Marine-Grade Aluminum Side Scuttle – Premium Portholes for Vessels
Durable & Watertight Aluminum Portholes for Marine Applications

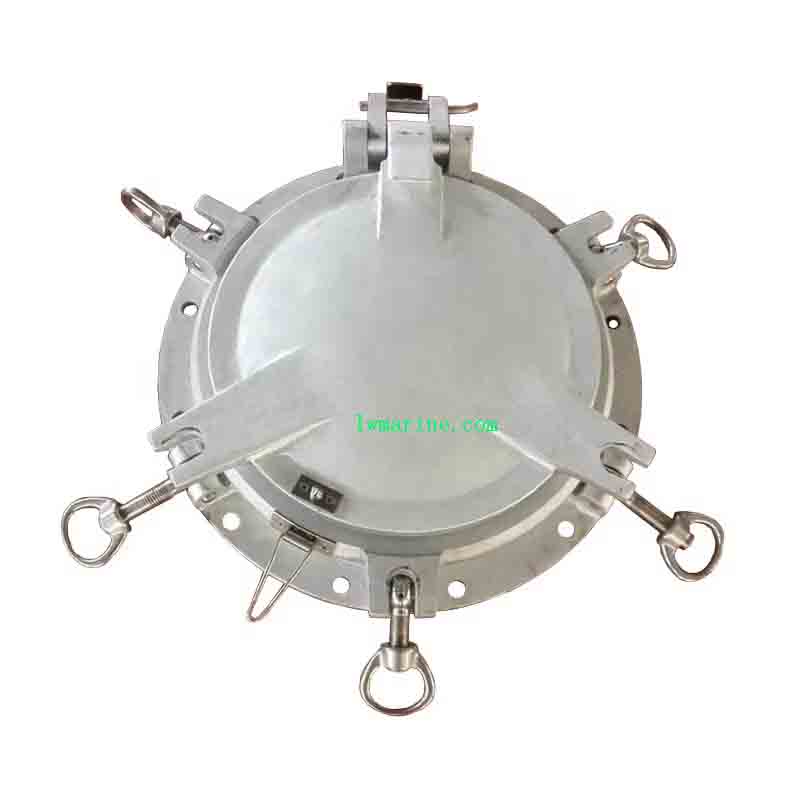

Our marine aluminum side scuttle is engineered to provide superior performance and long-lasting durability for all types of vessels. Available in light and heavy-duty configurations, these corrosion-resistant portholes combine functional design with marine-grade construction, making them ideal for yachts, commercial ships, and offshore platforms.
Key Features & Benefits
✔ Heavy-Duty & Lightweight Options – Choose between standard or reinforced models
✔ Storm Cover Included (Heavy-Duty Models) – Extra protection in rough sea conditions
✔ Marine-Grade Aluminum – 6061-T6 alloy for maximum saltwater resistance
✔ Tempered Safety Glass – 6-12mm thickness with clear or tinted options
✔ Custom Sizes Available – Bespoke diameters to fit your vessel’s requirements
Technical Specifications
| Clear Size (D) mm | D1 mm | D2 mm | D3 mm | D4 mm | Height (h) mm | Glass Thickness (t) mm | Gasket (gmax) mm | Bolt Size | Bolt Qty. | Cutout Size mm |
|---|---|---|---|---|---|---|---|---|---|---|
| φ200 | φ245 | φ250 | φ350 | φ310 | 155 | 8 | 50 | M12 | 8 | 253 |
| φ250 | φ295 | φ305 | φ400 | φ364 | 182 | 8 | 47.5 | M16 | 8 | 308 |
| φ300 | φ350 | φ360 | φ450 | φ414 | 207 | 10 | 45 | M16 | 12 | 363 |
| φ350 | φ400 | φ410 | φ500 | φ464 | 232 | 12 | 45 | M18 | 12 | 413 |
| φ400 | φ450 | φ460 | φ550 | φ514 | 257 | 12 | 45 | M18 | 12 | 463 |
| φ450 | φ500 | φ510 | φ600 | φ564 | 282 | 15 | 45 | M20 | 12 | 513 |
The description/sizes may be different with goods, please check with us when order.
