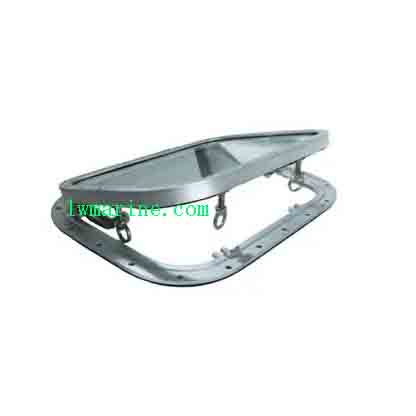

Marine Aluminum Rectangular Windows – Heavy Duty & Watertight
High-Performance Rectangular Windows for Ships & Offshore Structures
Our marine-grade aluminum rectangular windows are engineered for superior durability and weather resistance in demanding marine environments. These watertight windows are ideal for installation in ship cockpits, bridge buildings, and offshore platforms, providing clear visibility while withstanding harsh sea conditions.
Key Features & Benefits
✔ Marine-Grade Aluminum Construction – 6061-T6 alloy for maximum corrosion resistance
✔ Watertight Design – IP56-rated seals prevent leaks in rough seas
✔ Tempered Safety Glass – 6-12mm thickness with clear or tinted options
✔ Custom Sizes Available – Bespoke dimensions to fit your specific requirements
✔ Easy Installation – Pre-drilled frames for quick and secure mounting
Technical Specifications
| Nominal Size (W×H) mm | Cutout in Steel Wall (W1×H1×R) mm | Frame Size (W2×H2×R1) mm | External Size (W3×H3) mm |
|---|---|---|---|
| 300×425 | 352×477×50 | 348×473 | 430×555 |
| 355×500 | 407×552×50 | 403×548 | 485×630 |
| 400×560 | 452×612×50 | 448×608 | 530×690 |
| 450×630 | 502×682×100 | 498×678 | 580×760 |
| 500×710 | 552×762×100 | 548×758 | 630×840 |
| 560×800 | 612×852×100 | 608×848 | 690×930 |
| 900×630 | 952×682×100 | 948×678 | 1030×760 |
| 1000×710 | 1052×762×100 | 1048×758 | 1130×840 |
| 1100×800 | 1152×852×100 | 1148×930 | 1230×930 |
The description/sizes may be different with goods, please check with us when order.
