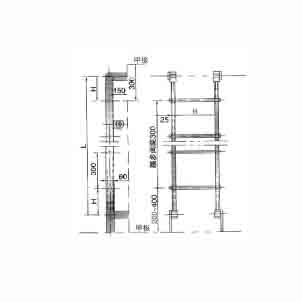

MARINE ALUMINIUM PIPE VERTICAL LADDER

CB/T670—94

264_YHS-003

APPLICATION

USED FOR CABINS, BULKHEAD PASSAGES AND DECK HOUSES OF VARIOUS SHIPS.

ALUMINIUM PIPE VERTICAL LADDER WITH STEP WIDTH B=400mm AND LADDER LENGTH L=1200mm

ALUMINIUM PIPE VERTICAL LADDER 400×1200 CB/T670-94

AS INDICATION:

STEP WIDTH B=400mm, LADDER LENGTH L=1200mm FOR ALUMINIUM PIPE VERTICAL LADDER

ALUMINIUM PIPE VERTICAL LADDER 400×1200 CB/T670-94

NUMBER OF STEPS	DECK CEILING	L	H	T	WEIGHT (KG)
					B=325	B=400
2	800~1000	800	150	6	3.65	3.73
2	900~1000	800	200	6	4.07	4.15
3	1150~1300	1000	250	6	4.71	4.83
4	1400~1600	1200	150	6	5.34	5.5
4	1500~1600	1200	250	6	5.76	5.92
5	1750~1900	1400	200	6	6.4	6.6
6	2000~2200	1800	150	6	7.03	7.27
6	2100~2200	2000	250	6	7.46	7.7
7	2350~2500	2200	200	8	8.43	8.71
8	2600~2800	2400	150	8	9.06	9.38
8	2700~2800	2600	250	8	9.85	10.17
9	2850~3100	2800	200	8	10.48	10.84
10	3200~3400	3000	200	8	11.11	11.51
10	3300~3400	3200	250	8	11.54	11.94
11	3550~3700	3400	200	8	12.17	12.61
12	3800~4000	3600	150	8	12.8	13.28

Note: The description may be different with the product, please contact us for quotation.
