MARINE ALUMINIUM ALLOY WHARF LADDER
CB*3116—82
264_YHS-005

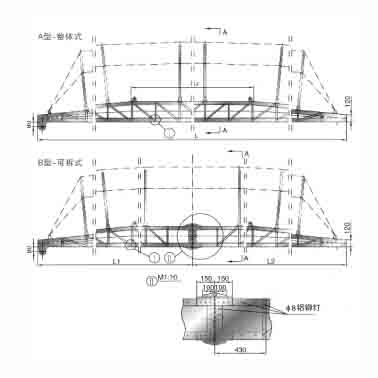

TYPE A – INTEGRATED TYPE
MAIN DIMENSIONS (mm) & WEIGHT (kg)
| MODEL | L | l | H | h | WEIGHT kg |
|---|---|---|---|---|---|
| A8 | 8000 | 3000 | 350 | 180 | 182 |
| A10 | 10000 | 4830 | 500 | 250 | 221 |
| A12.5 | 12500 | 4830 | 500 | 300 | 298 |
| A15 | 15000 | 7230 | 750 | 500 | 362 |
TYPE B – DETACHABLE TYPE
MAIN DIMENSIONS (mm) & WEIGHT (kg)
| MODEL | L1 | L2 | H | h | WEIGHT kg |
|---|---|---|---|---|---|
| B8 | 4000 | 4000 | 350 | 180 | 205 |
| B10 | 5000 | 5000 | 500 | 250 | 244 |
| B12.5 | 6250 | 6250 | 550 | 300 | 319 |
| B15 | 7500 | 7500 | 750 | 500 | 388 |
MARKING EXAMPLE
WHARF LADDER WITH LENGTH L=8000mm, TYPE A ALUMINIUM ALLOY WHARF LADDER
ALUMINIUM ALLOY WHARF LADDER A8 CB*3116-82
AS INDICATION:
SPRINGBOARD LENGTH L=8000mm FOR A TYPE ALUMINIUM SPRINGBOARD
ALUMINIUM SPRINGBOARD A8 CB*3116-82
Note: The description may be different with the product, please contact us for quotation.
