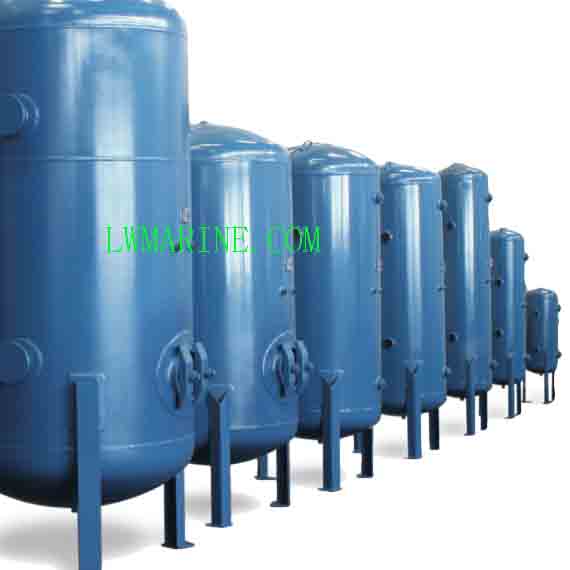

A0.4-1.0 Marine Medium Pressure Air Reservoir | Class-Certified Compressed Air Storage
Marine-Grade Air Receiver for Shipboard Compressed Air Systems
The A0.4-1.0 Marine Medium Pressure Air Reservoir is an essential class-approved pressure vessel designed specifically for marine and offshore applications. This robust air storage tank provides critical buffer capacity for shipboard pneumatic systems, ensuring reliable compressed air supply for engine starting, control systems, and pneumatic tools while meeting strict marine classification standards.
Key Features & Benefits
✔ Marine Certification Ready – Designed for ABS, DNV, BV, LR, and other class approvals
✔ Zero-Contamination Design – Premium sealing technology maintains air purity for sensitive applications
✔ Extended Service Life – Food-grade natural rubber diaphragm rated for 200,000+ cycles
✔ Moisture Separation – Removes impurities to protect downstream equipment
✔ Compact Marine Design – Space-efficient dimensions for engine room installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | A0.40-1.0 |
| Capacity | 0.4 m³ |
| Design Pressure | 1.1 MPa |
| Working Pressure | 1.0 MPa |
| Design Temperature | 100°C |
| Internal Diameter | 600 mm |
| Height | 1950 mm |
| Weight | 236 kg |
| Diaphragm Material | Food Grade Natural Rubber |
Marine Applications & Functions
Critical Shipboard Uses:
-
Main engine starting systems
-
Pneumatic tool operations
-
Control air and instrumentation
-
Air brake systems
-
Emergency system activation
System Performance Benefits:
-
Buffer capacity for intermittent air demands
-
Pressure stabilization eliminates pulsation
-
Moisture and contaminant removal for cleaner air
-
Reduces compressor cycling for energy efficiency
The description/sizes may be different with goods, please check with us when order.
