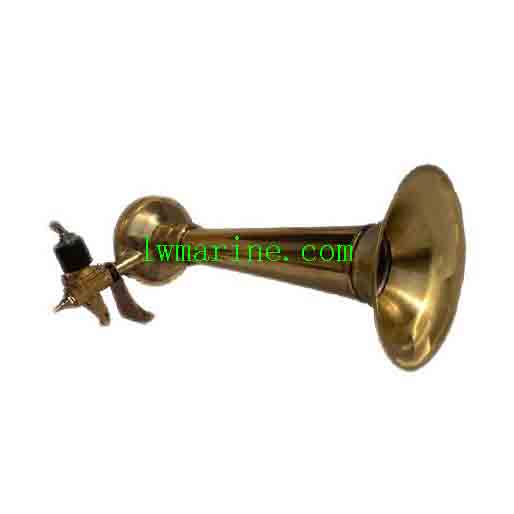

Marine Air Horn WD-2A
Drawing Document Information
| Item |
Specification |
| Drawing No. |
565/XY1-2A-00 |
| Version No. |
A |
| Drawing Mark |
|
| Weight |
34kg |
| Scale |
|
| Total Sheets |
1 Sheet |
| Sheet No. |
1 |
Component List
| No. |
Description |
| 1 |
THREE-WAY VALVE ASSEMBLY |
| 2 |
MAGNETIC VALVE ASSEMBLY |
| 3 |
THERMAL DEVICE ASSEMBLY |
| 4 |
PRONUNCIATION BODY ASSEMBLY |
| 5 |
ROD |
| 6 |
HORN |
| 7 |
FILTER |
Technical Parameters
| Parameter |
Specification |
| Air Consumption |
≤ 8.3×10⁻⁴ m³/s |
| Audibility range |
1.5 mile |
| Length of applicable vessel |
75-200 m |
| Sound pressure level |
138 dB |
| Working Air Pressure |
0.7-1.0MPa |
| Solenoid Valve Power |
45W |
| Heater power |
30W |
| Weight |
34 kg |
| Color |
BG01 Medium Gray |
| Protection Class |
IP56 |
| Quantity |
1 set |
| Specification |
DC220V DC110V DC24V |
Engineering Change & Approval Table
| Mark |
Number of Changes |
Change Document No. |
Signature |
Date |
| Design |
Standardization |
|
|
|
| Quality Joint Signature |
Approval |
|
|
|
| Review |
|
|
|
|
| Process |
Date |
|
|
|
Key Dimension & View Markings
- Main View Overall Dimensions: 990mm, 200mm, 485mm, 610mm, 56mm, 11mm, G1″
- Horn Body Dimension: φ500mm
- Inlet Flange (Scale 2:1): R40, 4-φ13, φ90, φ125, R53.5
- Heater (Scale 2:1): φ60mm, 34mm, 60mm
- Solenoid Valve (Scale 2:1): 6-φ6.5, 4-φ3.5, 67mm
- Side View Installation Dimensions: 485mm, 82mm, 165mm, 4-φ18, 65mm, 142mm
- 3D Assembly View Markings: 1, 2, 3, 4, 5, 6, 7
