Complete Compressed Air Systems for Marine Applications

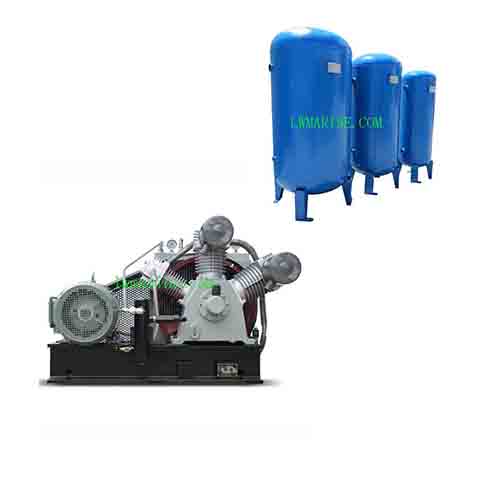

Our marine air compressor and receiver system provides reliable compressed air solutions for critical shipboard operations. These class-approved systems deliver high-pressure air for main engine starting, pneumatic tools, and control systems with exceptional efficiency and low noise operation.
Key Features & Benefits
✔ Dual-Unit Reliability – Compressor + receiver designed for marine environments
✔ Main Engine Starting – Specifically engineered for ship and marine diesel engine ignition
✔ Energy Efficient – Reduced power consumption with optimized performance
✔ Customizable Controls – Temperature monitoring, pressure regulation, and safety systems
✔ Marine-Grade Construction – Corrosion-resistant materials for extended service life
Technical Specifications
Air Compressor Units
| Model | Displacement | Working Pressure | Rotation Speed | Motor Power |
|---|---|---|---|---|
| CWF-60/30 | 60 m³/h | 3.0 MPa | 1500 rpm | 15 kW (20 HP) |

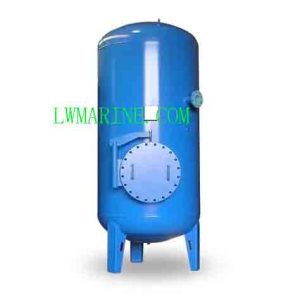

Air Receiver Options
| Model | Capacity | Design Pressure | Working Pressure | Temperature Rating |
|---|---|---|---|---|
| A0.63-1.0 | 0.63 m³ | 1.1 MPa | 1.0 MPa | 100°C |
| B0.8-1.0 | 0.8 m³ | 1.1 MPa | 1.0 MPa | 100°C |
| B1.0-1.0 | 1.0 m³ | 1.1 MPa | 1.0 MPa | 100°C |
System Applications
Primary Marine Uses:
-
Main engine starting systems
-
Pneumatic tool operation
-
Control air supply
-
Instrumentation air
-
Emergency system activation
Operational Advantages:
-
Buffer capacity for intermittent air demands
-
Reduced compressor cycling for energy savings
-
Stable pressure delivery for sensitive equipment
-
Emergency air reserve for critical systems
Customizable Control Features
Available Options:
-
Dual-machine control systems for redundancy
-
Temperature monitoring and protection
-
Inlet pressure regulation
-
High-pressure exhaust hose configurations
-
Custom pressure settings for specific applications
The description/sizes may be different with goods, please check with us when order.
