Marine A60 Fire Window – Marine Safety Certified
60-Minute Fire Protection Windows for Marine Applications

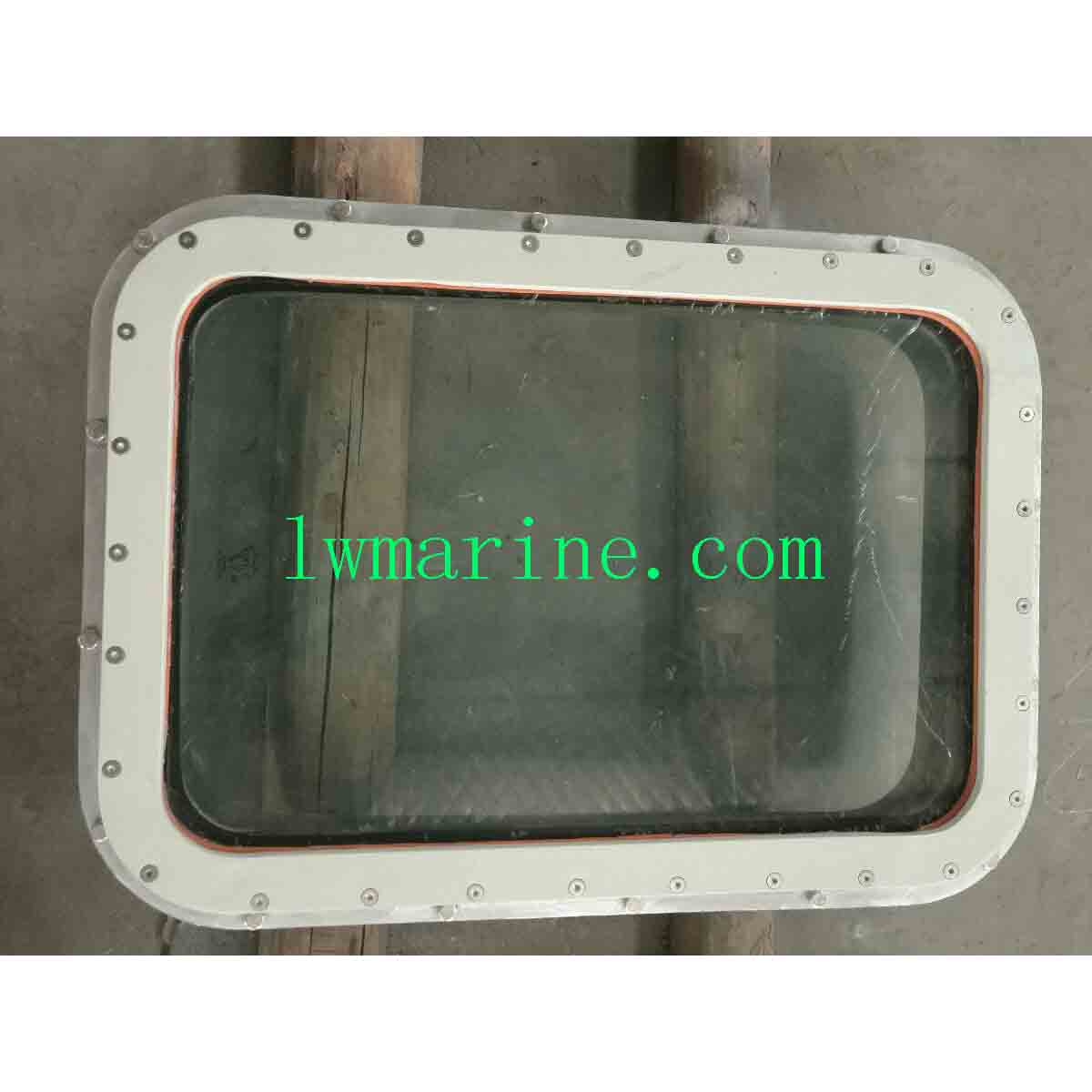

Our marine A60 steel fire window provides critical fire compartmentalization for ships and offshore structures. Constructed with high-grade carbon steel frames and specialized fire-resistant glass, these windows maintain structural integrity during 60 minutes of fire exposure while preventing flame and smoke penetration.
Key Safety Features & Benefits
✔ A60 Fire Rating Certified – Withstands 60-minute fire exposure (EN 1364-1 tested)
✔ Triple-Layer Protection System:
-
Carbon steel frame (Q235 grade)
-
Fire-resistant glass (ceramic or wired)
-
Intumescent fire sealant
✔ Customizable Thickness – 36-45mm total glass assembly options
✔ Marine-Grade Durability – Hot-dip galvanized for corrosion resistance
✔ Dual-Purpose Design – Combines fire resistance with weathertight performance
Technical Specifications
| Model | Nominal Size (W×H×R) mm | Cutout Size (W+52)×(H+52)×R1 mm | Glass Outline (W+40)×(H+40)×R3 mm | Total Glass Thickness (mm) |
|---|---|---|---|---|
| 1 | 355×500×50 | 407×552×76 | 390×540×70 | 36 (E) / 34 (F) |
| 2 | 400×560 | 452×612 | 440×600 | 36 / 34 |
| 3 | 450×630×100 | 502×652×126 | 490×670×120 | 36 / 34 |
| 4 | 900×630 | 952×682 | 940×670 | 38 / 36 |
| 5 | 1000×710 | 1052×762 | 1040×750 | 38 / 36 |
| 6 | 1200×800 | 1252×852 | 1240×840 | 41 / 38 |
| 7 | 1400×900 | 1452×952 | 1440×940 | 41 / 38 |
| 8 | 1600×900 | 1652×952 | 1640×940 | 45 / 41 |
| 9 | 1800×1000 | 1852×1052 | 1840×1040 | 45 / 41 |
| 10 | 2000×1000 | 2052×1052 | 2040×1040 | 45 / 41 |
Advanced Fire Protection Components:
-
Intumescent expansion seals (activate at 120°C)
-
Ceramic fire glass maintaining visibility during fires
-
Thermal break technology reducing heat transfer
-
Multi-point locking system for secure closure
Certifications & Compliance
✓ SOLAS Chapter II-2 Regulation 9 Certified
✓ IMO FTP Code Part 3 Approved
✓ DNV/GL, ABS, LR, BV Type Approved
✓ EN 1363-1 Fire Resistance Tested
The description/sizes may be different with goods, please check with us when order.
