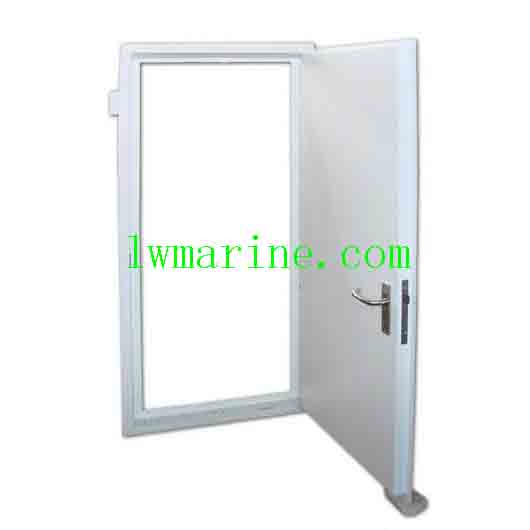

China Marine A60 Fireproof Steel Door
Our China Marine A60 Fireproof Steel Door is meticulously engineered to meet the stringent fireproof requirements set forth by SOLAS (International Convention for the Safety of Life at Sea) in 1974, with amendments made in 1983. These doors are certified to the CB3234-84 standard and hold type approval certificates from leading classification societies, including EC, ABS, BV, GL, NK, and CCS, ensuring their compliance with international maritime safety regulations.
Key Features:
- High-Quality Fireproof Performance: The steel fireproof door is designed to withstand extreme temperatures, providing critical protection in fire-prone areas of ships, such as passageways, bulkheads, engine room casing walls, and accommodation spaces.
- Multiple Fire Ratings: Available in various fire ratings, including A60, A0, A30, B15, and B0, these doors cater to different fire safety requirements on maritime vessels.
- Emergency Exit Options: B-class doors come equipped with emergency exit features, such as kick-out panels or vent louvers, ensuring safe evacuation during emergencies.
- Customizable Color Options: Customers can select from a range of color options for their marine fireproof doors. We provide color samples for reference, allowing for seamless integration with the vessel’s interior design.
- Flexible Opening Directions: The doors can be installed to open left, right, outwards, or inwards, providing flexibility in design and installation to suit various ship layouts.
- Comprehensive Size Range: Our marine fireproof doors are available in a wide range of sizes, ensuring a perfect fit for any doorway on your vessel. Refer to the main size list below for detailed dimensions.
Main Size List (mm):
| Class | Doorway Size (LxB) | Frame Size (L1xB1) | Opening Size of Wall (L2xB2) | T (Thickness) | D (Additional Dimension) |
|---|---|---|---|---|---|
| A | 1600×600 | 1693×693 | 1700×700 | Decided by the designer | T+40 |
| A | 1600×650 | 1693×743 | 1700×750 | ||
| A | 1650×600 | 1693×793 | 1700×800 | ||
| A | 1650×700 | 1743×693 | 1750×750 | ||
| A | 1700×600 | 1793×693 | 1800×700 | ||
| A | 1700×650 | 1793×743 | 1800×750 | ||
| A | 1700×700 | 1793×793 | 1800×800 | ||
| A | 1800×600 | 1893×693 | 1900×700 | ||
| A | 1800×700 | 1893×793 | 1900×800 | ||
| A | 1800×800 | 1893×893 | 1900×900 | ||
| A | 1850×800 | 1943×893 | 1950×900 | ||
| B | 1600×600 | 1664×680 | 1670×685 | ||
| B | 16000 | 1664×730 | 1670×735 | ||
| B | 1650×600 | 1714×680 | 1720×685 | ||
| B | 1650×700 | 1714×780 | 1720×785 | ||
| B | 1700×600 | 1764×680 | 1770×685 | ||
| B | 1700×650 | 1764×730 | 1770×735 | ||
| B | 1700×700 | 1764×780 | 1770×785 | ||
| B | 1800×600 | 1864×680 | 1870×685 | ||
| B | 1800×700 | 1864×780 | 1870×785 | ||
| B | 1800×800 | 1864×880 | 1870×885 | ||
| B | 1850×800 | 1914×880 | 1920×885 |
Frequently Asked Questions (FAQs):
Q1: What certifications do your China Marine A60 Fireproof Steel Doors hold?
A1: Our doors are certified to the CB3234-84 standard and hold type approval certificates from EC, ABS, BV, GL, NK, and CCS, ensuring compliance with international maritime safety regulations.
Q2: Can I customize the color of my marine fireproof door?
A2: Yes, we offer a range of color options for our marine fireproof doors. You can select from our color samples to match your vessel’s interior design.
Q3: What are the available fire ratings for your marine fireproof doors?
A3: Our marine fireproof doors are available in various fire ratings, including A60, A0, A30, B15, and B0, catering to different fire safety requirements on maritime vessels.
Q4: Do B-class doors come with emergency exit features?
A4: Yes, B-class doors are equipped with emergency exit features, such as kick-out panels or vent louvers, ensuring safe evacuation during emergencies.
Q5: How do I determine the correct size for my marine fireproof door?
A5: Our main size list provides detailed dimensions for various doorway sizes. You can refer to this list to select the appropriate size for your vessel. If you have specific requirements, our team can also assist you in determining the correct size.
Please Note: The description might be incorrect, please contact us for confirmation.
