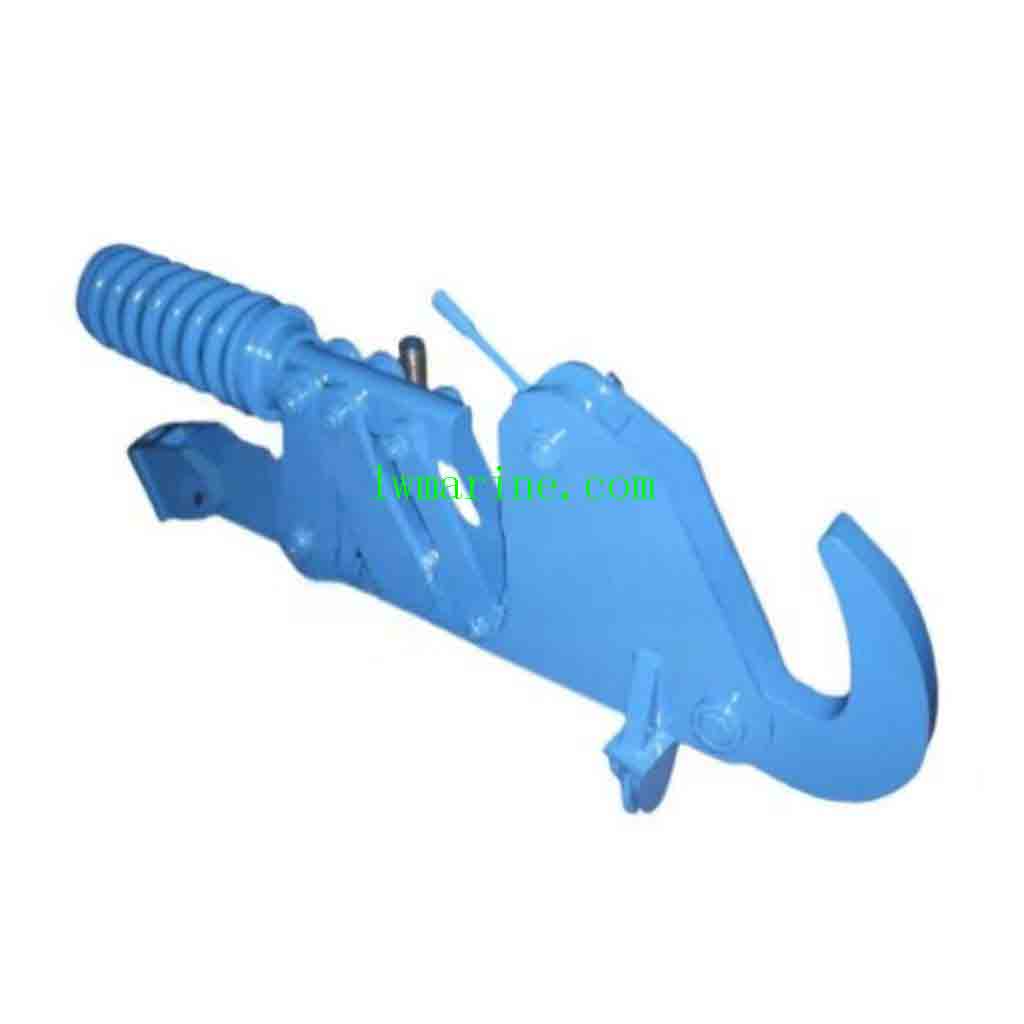

Manual Release Disc Towing Hook for Marine Emergency and Port Towing Operations
Our Manual Quick Release Disc Towing Hook is a robust and reliable marine towing equipment solution, specifically engineered for emergency towing scenarios and port towing operations. This versatile towing hook comes in a variety of types and sizes, meticulously designed to cater to the unique and specific requirements of our esteemed customers. It offers two release mechanisms: manual release and remote control release via a pneumatic air cylinder, providing flexibility and convenience in different towing situations.
The manual release disc towing hook operates by enabling the user to release the hook through a straightforward manual process. Simply pull the brake manually, attach a rope to the top of the brake, and then pull back to initiate the release. This intuitive design ensures quick and efficient hook release, minimizing downtime during critical towing operations.
We take pride in supplying a comprehensive range of marine towing hooks, each crafted from high-grade steel to ensure durability and longevity. Our products are available in a variety of colors, including red, black, blue, and grey, and can be customized according to your specific preferences. With a 12-month warranty period and certifications from leading classification societies such as CCS, ABS, BV, DNV, GL, and LR, you can trust in the quality and reliability of our marine towing equipment.
Key Features:
- Type: Disc Type Towing Hook
- Control System: Manual Release Operation with Optional Remote Control via Pneumatic Air Cylinder
- Safe Working Load (S.W.L.): Ranging from 70kN to 1000kN
- Test Load (T.L.): Ranging from 140kN to 1500kN
- Release Load (R.L.): Ranging from 70kN to 1000kN
- Weight: Ranging from 79kg to 1282kg
- Movement: Side Movement for Enhanced Flexibility
- Material: High-Grade Steel for Durability
- Color Options: Red, Black, Blue, Grey (Customizable)
- Warranty: 12 Months
- Certifications: CCS, ABS, BV, DNV, GL, LR
- Custom Design: Available for Specific Requirements
Technical Specifications (Unit: mm):
| Type | S.W.L. (kN) | T.L. (kN) | R.L. (kN) | Wt. (kg) | A | B | C | D | E | F | G | H | K | L | M | N | O | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCX5/7 | 70 | 140 | 70 | 79 | 512 | 712 | 185 | 235 | 100 | 45 | 280 | 291 | 65 | 125 | 60 | 112 | 97 | 260 |
| DCX8/15 | 150 | 300 | 150 | 174 | 670 | 905 | 255 | 325 | 140 | 60 | 340 | 377 | 100 | 250 | 65 | 144 | 106 | 284 |
| DCX18/25 | 250 | 500 | 250 | 414 | 923 | 1238 | 355 | 445 | 180 | 80 | 470 | 491 | 130 | 200 | 81 | 186 | 124 | 427 |
| DCX30/45 | 450 | 900 | 450 | 534 | 973 | 1323 | 355 | 455 | 200 | 100 | 470 | 190 | 130 | 200 | 115 | 218 | 158 | 462 |
| DCX50/65 | 650 | 1300 | 650 | 918 | 1173 | 1598 | 454 | 464 | 220 | 110 | 600 | 608 | 162 | 250 | 125 | 256 | 173 | 487 |
| DCX70/100 | 1000 | 1500 | 1000 | 1282 | 1068 | 1750 | 492 | 632 | 280 | 135 | 650 | 668 | 176 | 290 | 135 | 288 | 182 | 530 |
Remarks:
- S.W.L. = Safe Working Load in KN
- T.L. = Test Load in KN
- R.L. = Release Load in KN
- Wt. = Weight in Kilograms
FAQs:
Q1: What is the primary use of a manual release disc towing hook?
A1: The manual release disc towing hook is primarily used for emergency towing and port towing operations, providing a reliable and efficient solution for securing and releasing towing lines.
Q2: Can the towing hook be released remotely?
A2: Yes, our towing hook offers an optional remote control release mechanism via a pneumatic air cylinder, allowing for convenient and safe operation from a distance.
Q3: What materials are used in the construction of the Manual Quick Release Hook?
A3: The towing hook is crafted from high-grade steel, ensuring durability and longevity even in harsh marine environments.
Q4: Are custom designs available for specific requirements?
A4: Absolutely, we offer custom design services to meet the unique and specific requirements of our customers, ensuring optimal performance and satisfaction.
Q5: What certifications does the towing hook have?
A5: Our towing hook is certified by leading classification societies, including CCS, ABS, BV, DNV, GL, and LR, ensuring compliance with international standards and regulations.
The description/sizes may be different with goods, please check with us when order.
