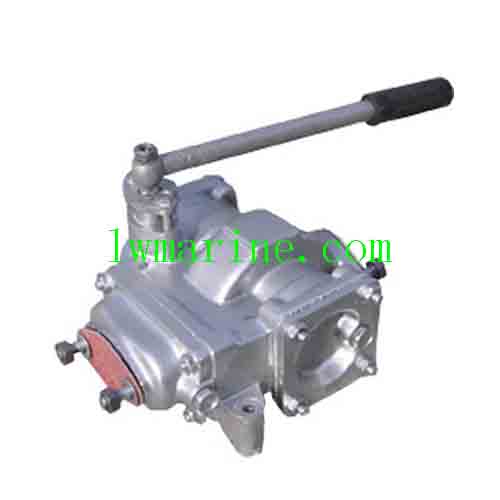

CS Marine Manual Hand-Operated Bilge Pump: High-Performance Piston Pump for Marine & Industrial Applications
The CS Series Manual Hand-Operated Bilge Pump is a robust and versatile piston pump designed specifically for marine environments and various industrial sectors. This high-quality manual bilge pump is engineered to efficiently transfer lubricating oil, fuel oil, freshwater, seawater, and other non-corrosive liquids that do not contain hard particles or fibers. Its reliable performance makes it an ideal choice for ships, civil engineering projects, firefighting operations, water drainage systems, oil and water wells, kitchen vehicle transport, and other diverse applications.
Key Features & Benefits:
- Durable Construction: Built with high-quality materials, including iron cylinders or copper alloys, ensuring longevity and resistance to wear and tear.
- Versatile Application: Suitable for pumping a wide range of liquids, including lubricating oil, fuel oil, freshwater, and seawater, making it a versatile solution for marine and industrial needs.
- Manual Operation: Requires no external power source, providing a reliable and cost-effective pumping solution in remote or off-grid locations.
- High Flow Rate: Efficiently transfers liquids with a capacity ranging from 20 to 65 m³/h, depending on the model.
- Temperature Resistance: Capable of handling transmission medium temperatures up to a maximum of 60℃, ensuring reliable performance in various environmental conditions.
Model Explanation & Specifications:
For example, the CS-20Y/H model:
- C: Stands for Marine, indicating its primary application in the marine industry.
- S: Represents Hand Pump, highlighting its manual operation mechanism.
- 20: Indicates the inlet and outlet diameter of 20mm, ensuring compatibility with a wide range of piping systems.
- Y/H: Specifies the cylinder material, with Y representing an iron cylinder and H representing a copper alloy cylinder.
Technical Parameters:
| Series Name | Product Name | Model | Capacity (m³/h) | Pressure Head (m) | Strokes per Minute | Suction Head (m) | Piston Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| CS | Marine Hand Pump | CS-20 | 20 | 20-25 | 50 | 5 | 68 | 1.45 |
| CS | Marine Hand Pump | CS-20Y/H | 20 | 25 | 50 | 6 | 68 | 0.33 |
| CS | Marine Hand Pump | CS-25Y/H | 32 | 25 | 50 | 6 | 80 | 0.33 |
| CS | Marine Hand Pump | CS-32 | 40 | 20-25 | 50 | 5 | 90 | 0.33 |
| CS | Marine Hand Pump | CS-32Y/H | 48 | 25 | 50 | 6 | 90 | 0.33 |
| CS | Marine Hand Pump | CS-40Y/H | 65 | 25 | 50 | 6 | 90 | 0.36 |
Application:
The CS Series Manual Hand-Operated Bilge Pump is applicable for marine use to transport freshwater, fuel, sewage, and non-corrosive water. It is not suitable for transporting liquids that contain any fibers or solid granules.
Maximum Medium Temperature:
The maximum transmission medium temperature for this pump is 60℃, ensuring safe and reliable operation in various environmental conditions.
FAQs
Q1: Can the CS Series Manual Hand-Operated Bilge Pump be used for pumping corrosive liquids?
A1: No, the CS Series Manual Hand-Operated Bilge Pump is designed for pumping non-corrosive liquids only. It is not suitable for transporting corrosive substances that may damage the pump’s components.
Q2: What is the maximum temperature the pump can handle?
A2: The maximum transmission medium temperature for the CS Series Manual Hand-Operated Bilge Pump is 60℃. Operating the pump beyond this temperature may result in reduced performance or damage to the pump.
Q3: Can the pump be used for pumping liquids containing fibers or solid granules?
A3: No, the CS Series Manual Hand-Operated Bilge Pump is not suitable for pumping liquids that contain fibers or solid granules. These substances can clog the pump and cause it to malfunction.
Q4: Is the pump easy to install and maintain?
A4: Yes, the CS Series Manual Hand-Operated Bilge Pump is designed for easy installation and maintenance. Its simple manual operation mechanism and durable construction make it a hassle-free solution for various pumping needs.
Q5: What are the available models and their respective capacities?
A5: The CS Series Manual Hand-Operated Bilge Pump is available in multiple models, including CS-20, CS-20Y/H, CS-25Y/H, CS-32, CS-32Y/H, and CS-40Y/H. Each model has a different capacity, ranging from 20 to 65 m³/h, allowing you to choose the one that best suits your specific requirements.
Please Note: The description might be incorrect, please contact us for confirmation.
