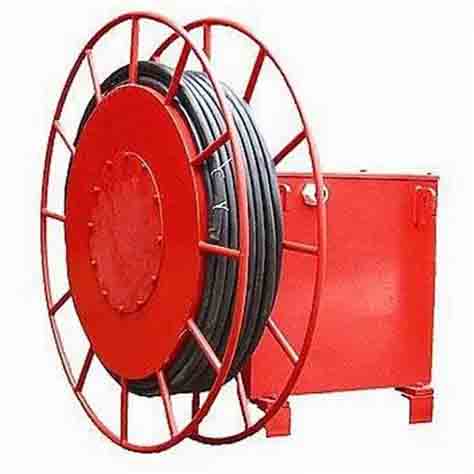

Magnetic Coupling Cable Reel Supplier

Our Magnetic Coupling Type Cable Reel represents a leap forward in reliable power delivery for industrial mobile machinery. This advanced system utilizes a non-contact magnetic coupling mechanism to drive the reel, ensuring perfectly synchronized winding and unwinding of the cable. This innovative design guarantees a continuous, stable power supply and flawless synchronization, eliminating the reliability issues common in mechanical drives. Built to perform consistently in harsh industrial environments, it is impervious to dust, moisture, and varying weather conditions, making it the ideal power supply solution for large-scale mobile equipment like coal handling systems in power plants, port gantry cranes, and bulk material stackers.

The complete assembly is engineered for durability and includes the reel assembly, a high-performance slip ring box, a hysteresis motor disk, a reliable reel current collector, an adjustable torque regulator, and a robust drive motor.

How It Works: Reliable Operation in Two Cycles

1. Cable Unwinding (Pay-Out):
   When your mobile equipment moves away from the power source, the cable is pulled taut. This pulling force overcomes the pre-set magnetic torque, allowing the reel to slip between its disks. This smooth, controlled action pays out the cable without any jerky movements, preventing cable damage and ensuring a steady power flow even during extension. This process is ideal for automatic cable deployment in long-travel applications.

2. Cable Winding (Retraction):
   As the equipment returns towards the power source, the system’s motor automatically engages. Through the transmission drive, it rotates the reel body, neatly and tightly winding the cable back onto the drum. The magnetic coupling ensures this retraction is smooth and controlled, preventing loose loops, tangles, and potential damage, providing a tangle-free cable rewinding solution.
