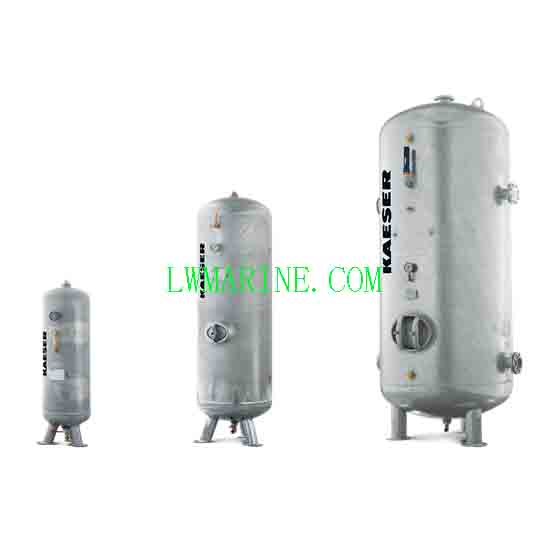

Low Pressure Marine Air Receiver | Class-Certified Compressed Air Storage
Marine-Grade Air Receivers for Shipboard Compressed Air Systems
Our low pressure marine air receiver is class-approved pressure vessels specifically engineered for marine and offshore applications. These robust storage tanks provide reliable compressed air supply for pneumatic tools, control systems, air brakes, and onboard machinery while meeting strict marine classification society requirements.
Key Features & Benefits
✔ Marine Certification Ready – Designed for ABS, DNV, BV, LR, and other class approvals
✔ Zero-Contamination Design – Excellent sealing properties maintain air purity for sensitive applications
✔ Extended Service Life – Food-grade natural rubber diaphragm rated for 200,000+ cycles
✔ Drinking Water Safe – Certified materials suitable for potable air systems
✔ Safety Compliant – Equipped with safety valves and pressure gauges for reliable operation
Technical Specifications
| Model | Capacity (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Temperature Rating (°C) | Dimensions (D×L×H mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| A0.63-1.0 | 0.63 | 1.1 | 1.0 | 100 | 790×1800×1400 | 487 |
| B0.8-1.0 | 0.8 | 1.1 | 1.0 | 100 | 700×2270×1400 | 529 |
| B1.0-1.0 | 1.0 | 1.1 | 1.0 | 100 | 800×2209×1490 | 695 |
Custom configurations and sizes available to meet specific vessel requirements
Applications & Marine Uses
Primary Shipboard Applications:
-
Pneumatic tool operations
-
Control air systems
-
Air brake systems
-
Engine starting air
-
Instrumentation and automation
Operational Advantages:
-
Buffer capacity for intermittent air demands
-
Pressure stabilization for sensitive equipment
-
Moisture separation improves air quality
-
Reduces compressor cycling for energy savings
The description/sizes may be different with goods, please check with us when order.
