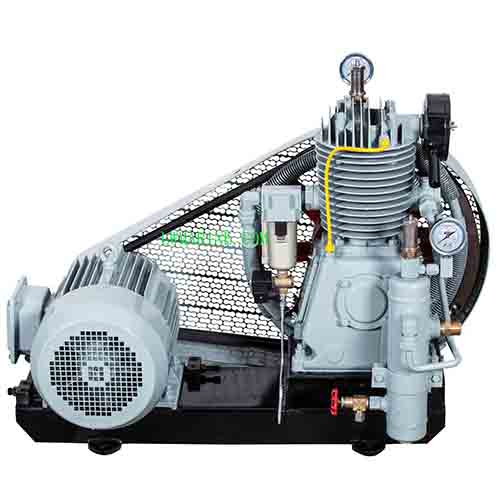

CWF – 20/1 Low – Pressure Marine Air Compressor
The CWF – 20/1 Low Pressure Marine Air Compressor is meticulously crafted to offer a capacity of 20 m³/h at a pressure of 1.0 MPa. This makes it an outstanding option for a variety of crucial shipboard applications, including marine engine starting, operating pneumatic control systems, and powering auxiliary systems. Specifically developed for low – pressure scenarios on ships, this water – cooled air compressor integrates energy – saving features with a quiet operation mode, thereby significantly enhancing the overall performance of the vessel.
Key Features and Advantages
1. Marine – Specific Design
The water – cooled system of this compressor is a standout feature. It effectively reduces vibration and noise levels during operation, creating a more comfortable and stable working environment on board. Moreover, this cooling mechanism helps extend the service life of the compressor, ensuring long – term reliable performance in the demanding marine environment.
2. Energy – Saving Operation
With a low power consumption of only 3kW (4HP), this marine air compressor helps minimize operating costs. Its energy – efficient design allows ships to save on fuel and electricity expenses over the long run, making it a cost – effective solution for ship owners and operators.
3. Flexible Control Options
This compressor offers versatile control features, including manual and automatic start – stop functions. Additionally, it is equipped with an unloading relief function. These control options enable precise management of the compressor’s operation, ensuring it meets the specific air supply requirements of different shipboard systems at different times.
4. Simple Maintenance
The compressor is designed with quick – access components, which greatly simplify the servicing and repair processes. Maintenance personnel can easily reach and inspect key parts, reducing downtime and ensuring the compressor remains in optimal working condition with minimal effort.
5. Compact Size
Measuring at 900×410×665mm, this compressor has a space – saving footprint. Its compact dimensions make it easy to install in the engine room, even in vessels with limited space. This allows for efficient use of available space while still providing reliable air compression capabilities.
Technical Specifications
| Model | Capacity (m³/h) | Pressure (MPa) | Speed (r/min) | Power | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| CWF – 20/1 | 20 | 1.0 | 720 | 3kW (4HP) | 138 | 900×410×665 |
These detailed technical specifications provide all the necessary information for shipbuilders, engineers, and operators to select the right CWF – 20/1 Low Pressure Marine Air Compressor for their specific shipboard needs, ensuring seamless integration and optimal performance.
The description/sizes may be different with goods, please check with us when order.
