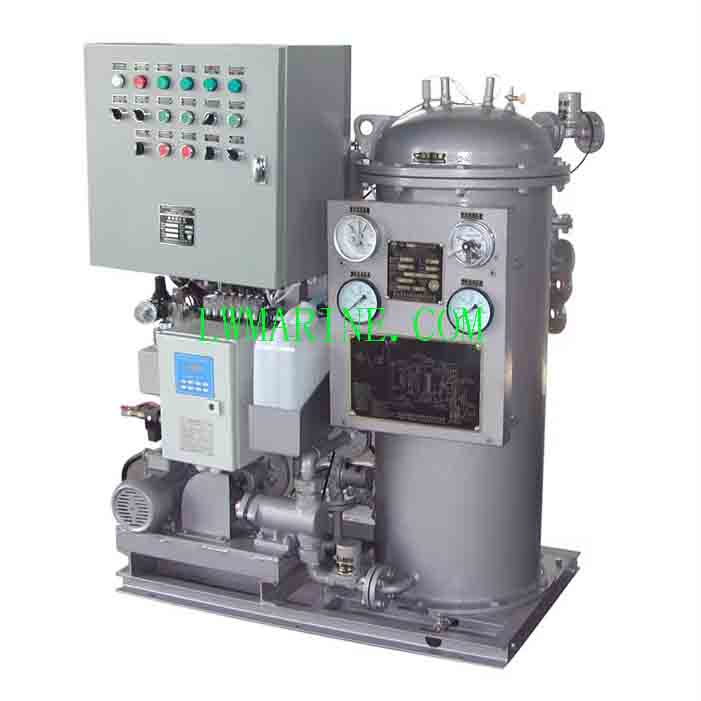

IMO MEPC.107(49) Certified LOW Maintenance Marine OWS Oily Water Separator | 15ppm Bilge Water Treatment System | YSZ Series (0.1-5.0 m³/h)
Product Overview
Our IMO MEPC.107(49) certified Low Maintenance OWS provides complete bilge water treatment solutions for vessels operating in all water areas. The YSZ series delivers reliable ≤15ppm effluent quality, ensuring full compliance with international discharge standards while featuring compact design, automated operation, and exceptional reliability for modern marine applications.
Key Features & Benefits
-
IMO MEPC.107(49) Certified: Full compliance with international marine pollution prevention standards
-
Compact & Space-Saving Design: Lightweight construction with small footprint for easy engine room installation
-
Automated Operation System: Features automatic/manual heating, oil discharge, alarm functions, and operation recording
-
High Efficiency Performance: Large treatment capacity with minimal energy consumption
-
Multi-Voltage Compatibility: 3Phase/380V/50Hz and 3Phase/440V/60Hz power supply options
-
Low Maintenance Design: Simple operation and easy maintenance requirements
-
International Certification Ready: Approved by all major classification societies
Technical Specifications
| Model | Capacity (m³/h) | Motor Power (kW) | Heating Power (kW) | Discharge Standard | Working Pressure |
|---|---|---|---|---|---|
| YSZ-0.1 | 0.1 | 0.12 | – | ≤15ppm IMO MEPC.107(49) | ≤0.3MPa |
| YSZ-0.25 | 0.25 | 0.18 | 1 | ≤15ppm IMO MEPC.107(49) | ≤0.3MPa |
| YSZ-0.5 | 0.5 | 0.25 | 2 | ≤15ppm IMO MEPC.107(49) | ≤0.3MPa |
| YSZ-1.0 | 1.0 | 0.37 | 2-3 | ≤15ppm IMO MEPC.107(49) | ≤0.3MPa |
| YSZ-2.0 | 2.0 | 0.75 | 3 | ≤15ppm IMO MEPC.107(49) | ≤0.3MPa |
| YSZ-3.0 | 3.0 | 1.1 | 3 | ≤15ppm IMO MEPC.107(49) | ≤0.3MPa |
| YSZ-4.0 | 4.0 | 1.5 | 3 | ≤15ppm IMO MEPC.107(49) | ≤0.3MPa |
| YSZ-5.0 | 5.0 | 1.5 | 3 | ≤15ppm IMO MEPC.107(49) | ≤0.3MPa |
Safety & Operational Warnings
-
Explosion Prevention: Never install in explosive atmospheres
-
Corrosion Protection: Anti-corrosive coating applied – no welding allowed on equipment
-
Proper Startup Procedure: Always fill with water before operation
-
Maintenance Requirement: Keep unit full of water after shutdown to maintain filter efficiency and service life
System Capabilities
-
Automated Monitoring: Continuous 15ppm compliance monitoring
-
Dual Control Mode: Automatic and manual operation options
-
Heating System: Automatic temperature control for optimal separation
-
Recording Function: Automatic operation data logging
-
Alarm System: Immediate notification of system abnormalities
International Certifications
-
CCS (China Classification Society)
-
EC (European Commission)
-
BV (Bureau Veritas)
-
GL (Germanischer Lloyd)
-
KR (Korean Register)
-
DNV (Det Norske Veritas)
-
LR (Lloyd’s Register)
-
ABS (American Bureau of Shipping)
-
RINA (Registro Italiano Navale)
Applications
-
Commercial shipping vessels
-
Offshore support vessels
-
Passenger and cruise ships
-
Fishing and workboats
-
Naval and coast guard vessels
The description/sizes may be different with goods, please check with us when order.
