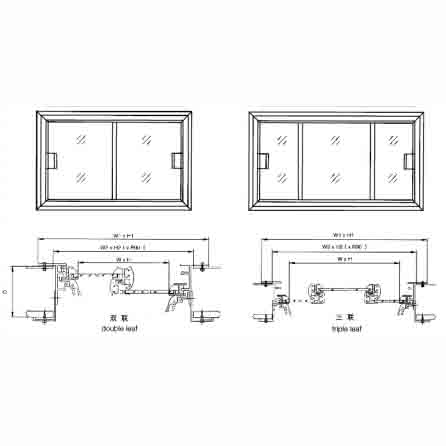

LIGHT ALUMINIUM DOUBLE LEAF SLIDING WINDOW
261.YHS-015
WITH GOOD TIGHTNESS, USED FOR YACHT AND FERRY
| TYPE A | DOUBLE LEAF | LEFT-RIGHT MOVING |
|---|---|---|
| TYPE B | TRIPLE LEAF | LEFT-RIGHT MOVING, CENTRE FIXED |
| CODE | Y | F |
|---|---|---|
| TYPE | ROUND ANGLE TYPE | SQUARE ANGLE TYPE |
| TYPE | CLEAR SIZE W×H | EXTERNAL SIZE W1×H1 | CUTOUT SIZE W2×H2 | THICKNESS D | WEIGHT KG |
|---|---|---|---|---|---|
| A | 600×300 | 726×426 | 682×382 | 8.2 | 11.4 |
| 700×400 | 806×526 | 782×482 | 11.4 | 15.2 | |
| 800×500 | 926×626 | 862×582 | 15.2 | 18.6 | |
| 900×600 | 1026×726 | 962×682 | 18.6 | 21.7 |
| TYPE | CLEAR SIZE W×H | EXTERNAL SIZE W1×H1 | CUTOUT SIZE W2×H2 | WEIGHT KG |
|---|---|---|---|---|
| B | 1100×500 | 1226×626 | 1182×582 | 11.1 |
| 1200×500 | 1326×626 | 1282×582 | 15.2 | |
| 1400×600 | 1526×726 | 1482×682 | 21.4 | |
| 1600×700 | 1726×826 | 1682×782 | 26.7 | |
| 1800×700 | 1826×826 | 1862×782 | 28.4 |
IDENTIFICATION EXAMPLE:
LIGHT ALUMINUM TRIPLE LEAF SLIDING WINDOW WITH CLEAR SIZE OF 1100×800, SQUARE ANGLE
LIGHT ALUMINUM TRIPLE LEAF SLIDING WINDOW BF1100×800 261.YHS-015
Note: The description may be different with the product, please contact us for quotation.
