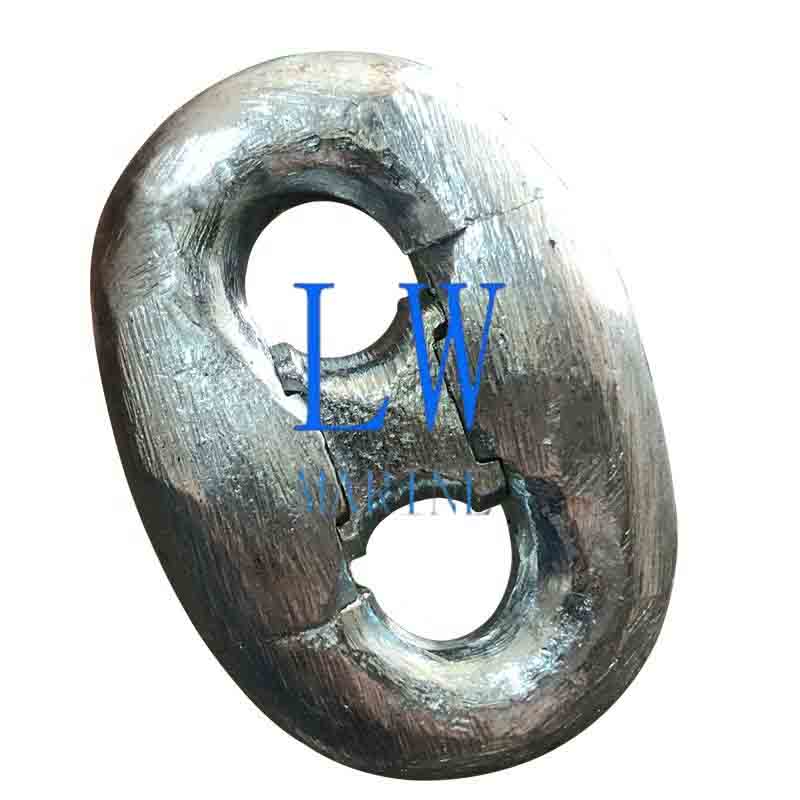

Kenter Shackles

Kenter Shackles

Certificate: CCS, GL and BV certificate.
Delivery Time: 15days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Kenter Shackles – The Marine-Grade Chain Connector

Secure Anchor Chain Connections for Harsh Marine Environments

Kenter Shackles Key Advantages:
✔ Reliable Chain Joining – Specially designed for connecting anchor chain sections
✔ Robust Construction – Forged steel body withstands extreme marine conditions
✔ Easy Assembly – Interlocking design with round pins for quick, secure connections
✔ Corrosion Protection – Black bituminous coating for enhanced durability

Technical Specifications:

  • Type: Kenter Shackle

  • Material: High-strength forged steel

  • Grades Available: Grade 2 / Grade 3

  • Size Range: 12.5mm to 162mm

  • Surface Treatment: Black bituminous painted

  • Certifications: CCS, ABS, BV, LR, NK, RINA compliant

Premium Features:
• Essential component for ship anchoring systems
• Designed to match anchor chain strength
• Simple yet effective two-piece interlocking mechanism
• Built to withstand saltwater corrosion

Kenter Shackles Specification:

Nominal Dia.  (mm) Grade 2 Grade 3 A B
Proof Load (KN) Breaking Load (KN) Proof Load (KN) Breaking Load (KN)
12.5 66 92 92 132 75 53
14 82 116 116 165 84 59
16 107 150 150 216 96 67
17.5 127 179 179 256 105 74
19 150 211 211 301 114 80
20.5 175 244 244 349 123 86
22 200 280 280 401 132 92
24 237 332 332 476 144 101
26 278 389 389 556 156 109
28 321 449 449 642 168 118
30 368 514 514 735 180 126
32 417 583 583 833 192 134
34 468 655 655 937 204 143
36 523 732 732 1050 216 151
38 581 812 812 1160 228 160
40 640 896 896 1280 240 168
42 703 981 981 1400 252 176
44 769 1080 1080 1540 264 185
46 837 1170 1170 1680 276 193
48 908 1270 1270 1810 288 202
50 981 1370 1370 1960 300 210
52 1060 1480 1480 2110 312 218
54 1140 1590 1590 2270 324 227
56 1220 1710 1710 2430 336 235
58 1290 1810 1810 2600 348 244
60 1380 1940 1940 2770 360 252
62 1470 2060 2060 2940 372 260
64 1560 2190 2190 3130 384 269
66 1660 2310 2310 3300 396 277
68 1750 2450 2450 3500 408 286
70 1840 2580 2580 3690 420 294
73 1990 2790 2790 3990 438 307
76 2150 3010 3010 4300 456 319
78 2260 3160 3160 4500 468 328
81 2410 3380 3380 4820 486 340
84 2580 3610 3610 5160 504 353
87 2750 3850 3850 5500 522 365
90 2920 4090 4090 5840 540 378
92 3040 4260 4260 6080 552 386
95 3230 4510 4510 6440 570 399
97 3340 4680 4680 6690 582 407
100 3530 4940 4940 7060 600 420
102 3660 5120 5120 7320 612 428
105 3850 5390 5390 7700 630 441
107 3980 5570 5570 7960 642 449
111 4250 5940 5940 8480 666 466
114 4440 6230 6230 8890 684 479
117 4650 6510 6510 9300 702 491
120 4850 6810 6810 9720 720 504
122 5000 7000 7000 9990 732 512
124 5140 7200 7200 10280 744 521
127 5350 7490 7490 10710 762 533
130 5570 7800 7800 11140 780 546
132 5720 8000 8000 11420 792 554
137 6080 8510 8510 12160 822 575
142 6450 9030 9030 12910 852 596
147 6840 9560 9560 13660 882 617
152 7220 10100 10100 14430 912 638
157 7600 10640 10640 15200 942 659
162 7990 11180 11180 15980 972 680

The description/sizes may be different with goods, please check with us when order.
