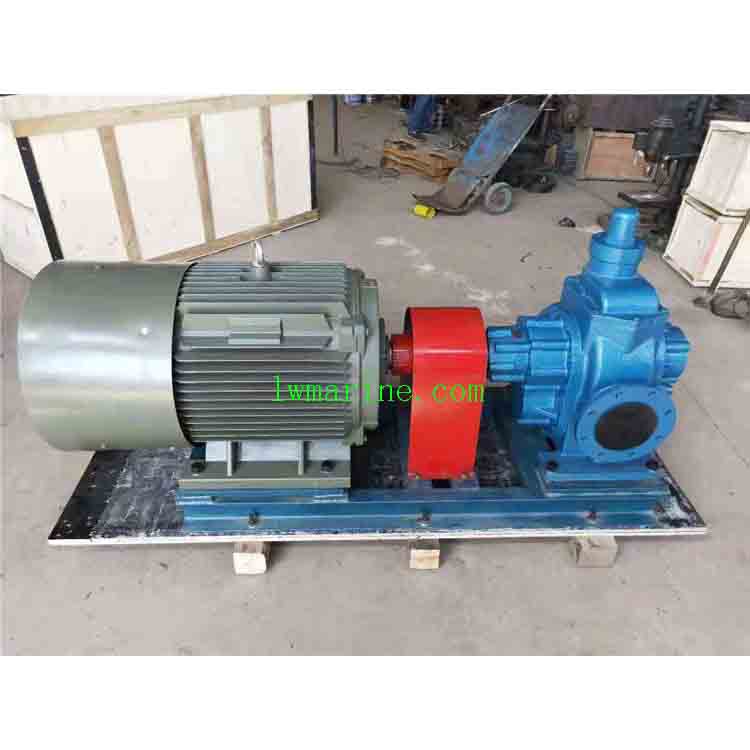

KCB Series Marine Gear Oil Pump

KCB Series Marine Gear Oil Pump | Heavy-Duty Lubrication & High-Viscosity Fluid Transfer Solutions

Product Overview
The KCB Series Marine Gear Oil Pump delivers superior performance in handling high-temperature, high-viscosity fluids across demanding marine and industrial applications. Engineered as an advanced upgrade to 2CY pump models, these robust gear pumps feature integrated safety reflux valves and handle temperatures up to 300°C. With exceptional viscosity capabilities from 5-1,500 cSt (extendable to 50,000 cSt at reduced speeds), KCB pumps efficiently transfer non-corrosive lubricating oils and similar fluids without solid particles or fibrous content.

Model Identification: KCB-300

KCB: Gear pump with safety reflux valve (2CY series upgrade)
300: Flow capacity (300 L/min)

Technical Specifications

Flow Capacity: 1.1–684 m³/h (18.3–9,600 L/min)
Discharge Pressure: 0.28–1.45 MPa
Temperature Resistance: Up to 300°C
Viscosity Range: 5–50,000 cSt
Port Sizes: G¾” to φ350 mm
Motor Power: 1.5–250 kW
Frequency Compatibility: 50/60 Hz dual operation

Performance Data Highlights

Model	Flow (m³/h)	Pressure (MPa)	Motor Power (kW)	Efficiency (%)
KCB-18.3	1.1–1.3	1.45	1.5–2.2	59
KCB-300	18–21.6	0.36	5.5–7.5	42
KCB-1200	72–86.4	0.6	37–55	43
KCB-5400	325–390	0.6	160–185	44

Key Features & Benefits

High-Temperature Performance: Reliable operation with fluids up to 300°C
Extended Viscosity Range: Handles 5–50,000 cSt fluids with speed adjustment
Integrated Safety Valve: Built-in reflux valve prevents system overpressure
Robust Gear Design: Precision-engineered gears for smooth, pulsation-free flow
Marine-Grade Construction: Corrosion-resistant materials for harsh environments
Energy Efficient Operation: Optimized gear geometry reduces power consumption
Dual Frequency Operation: 50/60 Hz compatibility for global applications
Low NPSH Requirements: Enhanced suction performance for reliable priming
