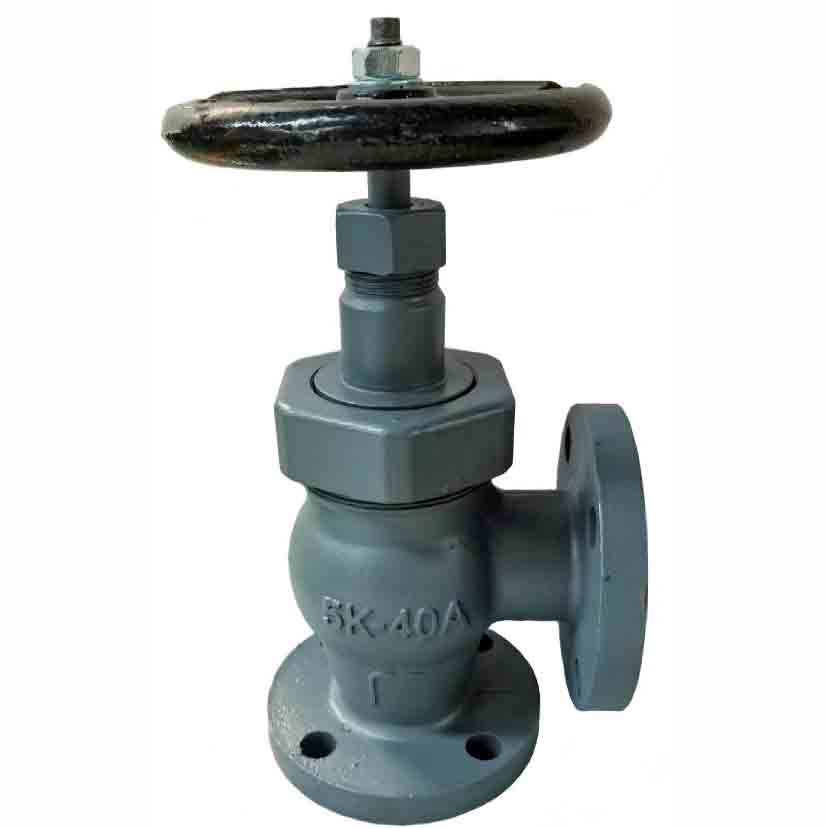

JIS Marine Ductile Iron Valves Angle Valve 5K
| Code | Standard Number | Flange Spacing L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Screw Hole | Weight G (kg) |
|---|---|---|---|---|---|---|
| 750311 | F7322 5K15 | 55 | 80 | 60 | 4×Ф12 | 1.89 |
| 750312 | F7322 5K20 | 60 | 85 | 65 | 4×Ф12 | 2.65 |
| 750313 | F7322 5K25 | 65 | 95 | 75 | 4×Ф12 | 3.85 |
| 750314 | F7322 5K32 | 80 | 115 | 90 | 4×Ф15 | 5.29 |
| 750315 | F7322 5K40 | 85 | 120 | 95 | 4×Ф15 | 6.86 |
Attention please: The description may be different with the product, please contact us for quotation.
