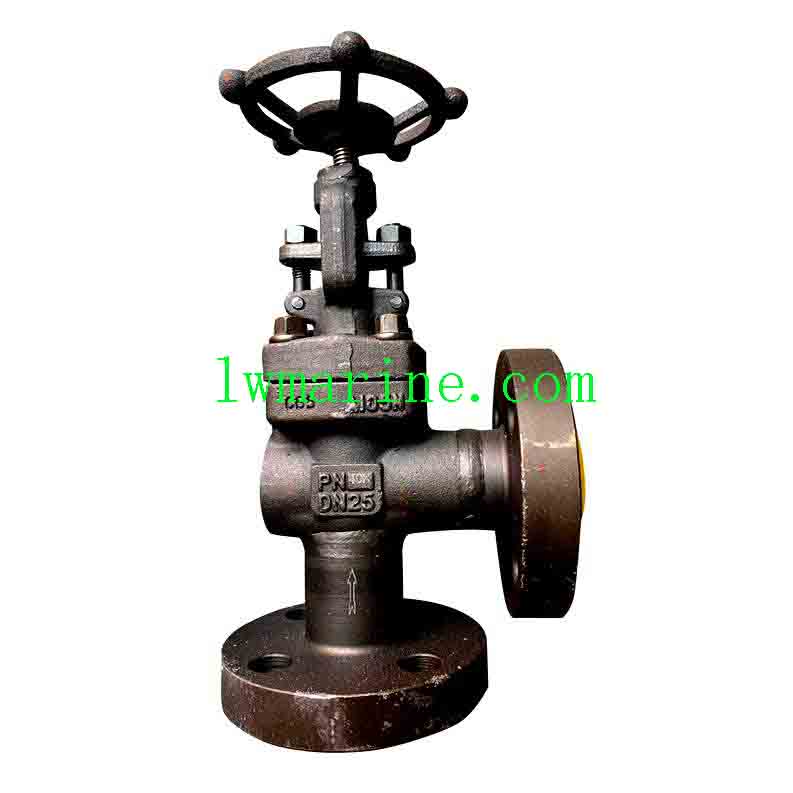

JIS F7422 Marine Forged Steel 90-Degree Angle Globe Valve
The JIS F7422 Marine FForged Steel Angle Globe Valve is a top-tier solution specifically designed to deliver outstanding performance in high-pressure marine and offshore settings. Featuring a forged steel body and stainless steel internal components, this 20K-rated valve offers unparalleled durability and robust corrosion resistance, making it well-suited to withstand the harsh and demanding conditions of marine environments. Adhering to JIS B2220 flange standards, it provides reliable shut-off and precise flow control for a variety of critical media, including fuel, steam, oil, and more, in shipbuilding projects, vessel repair tasks, and oil platform systems.
Key Features & Advantages
✅ JIS F7422 Certification Assurance – Fully compliant with Japanese marine valve standards, ensuring consistent quality and performance.
✅ 20K High-Pressure Resilience – Specifically engineered to handle rigorous marine applications with high-pressure requirements.
✅ Forged Steel Robust Construction – Offers superior strength and excellent impact resistance, ensuring long-lasting service.
✅ Stainless Steel Trim Excellence – The corrosion-resistant disc and stem enhance longevity and reliable operation.
✅ JIS B2220 Flange Seamless Integration – Enables effortless integration with marine piping systems for efficient installation.
✅ Multi-Standard Versatile Adaptability – Compatible with a range of flange and sealing standards, providing flexibility in different applications.
✅ OEM & Customization Flexibility – Accepts custom branding and technical specifications to meet specific customer needs.
Material Composition
| Component | Material | Advantage |
|---|---|---|
| Body | Forged Steel | High strength and excellent pressure tolerance, ensuring the valve can withstand high-pressure conditions without deformation. |
| Disc | Stainless Steel | Provides superior corrosion resistance and ensures a tight seal, preventing leakage of critical media. |
| Stem | Stainless Steel | Exhibits wear resistance and enables smooth operation, reducing maintenance requirements. |
Technical Specifications
- Nominal Diameter:
- Type “S”: 6 & 10 mm
- Type “F”: 15–25 mm
- Pressure Rating: 20K
- Standards: JIS F7422, JIS B2220 Flange
- Media: Fuel, Steam, Oil, Water, Chemical Fluids
- Applications: Shipbuilding, Ship Repair, Offshore Platforms
Dimension Table
Type “S” (Small Size)
| IMPA Code | Size (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | K (mm) | D (mm) | C (mm) | n | h (mm) | t (mm) | H (mm) | B2 (mm) | D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 750621 | 6 | – | 42 | 38 | 51 | 12 | – | – | – | – | – | 115 | 30 | M24×1.5 |
| 750622 | 10 | – | 46 | 45 | 58 | 16 | – | – | – | – | – | 125 | 41 | M20×2 |
Type “F” (Standard Size)
| IMPA Code | Size (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | K (mm) | D (mm) | C (mm) | n | h (mm) | t (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 750626 | 15 | 75 | – | – | – | – | 95 | 70 | 4 | 15 | 14 | 160 |
| 750627 | 20 | 80 | – | – | – | – | 100 | 75 | 4 | 15 | 16 | 180 |
| 750628 | 25 | 95 | – | – | – | – | 125 | 90 | 4 | 19 | 16 | 190 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
