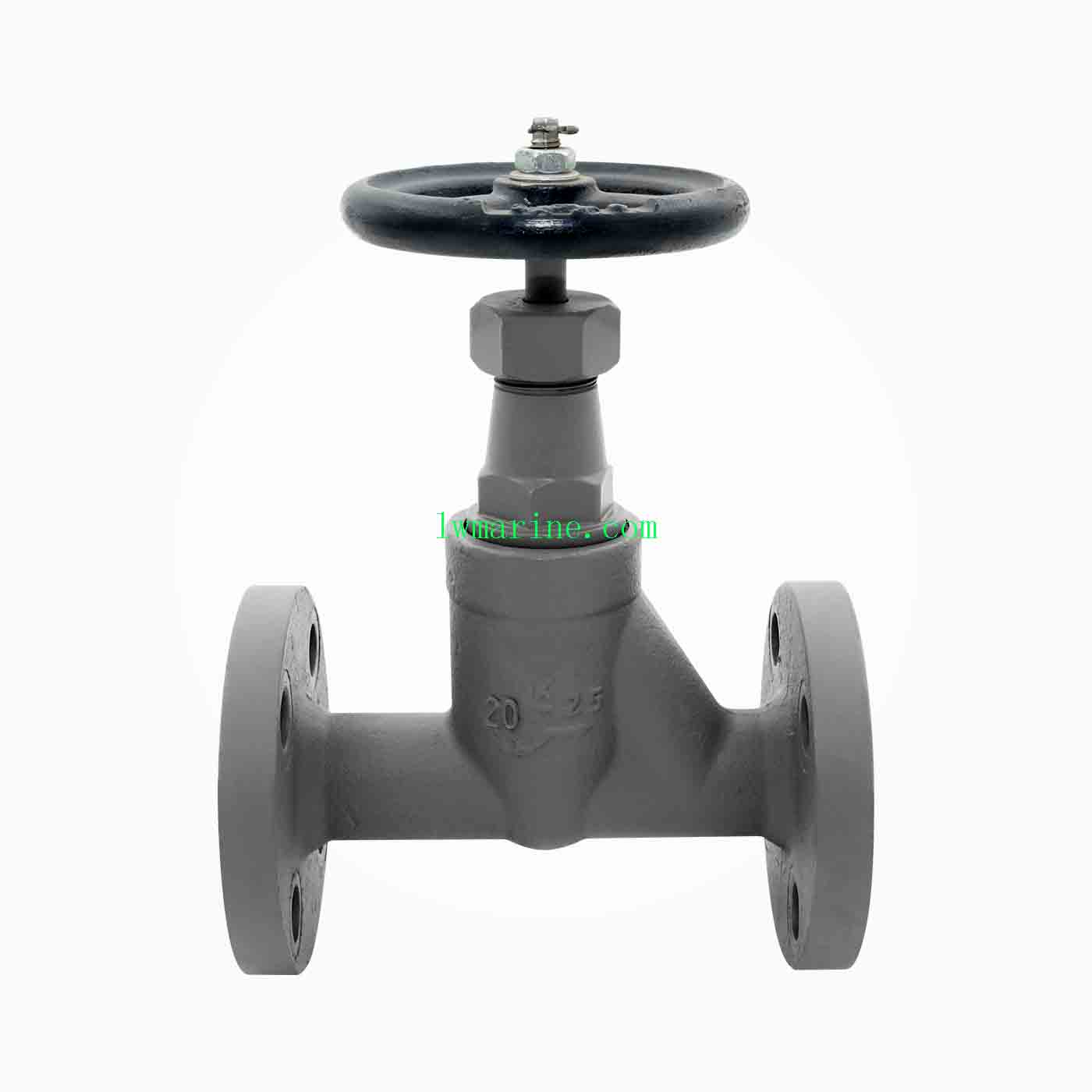

JIS F7421 Forged Steel Globe Valve for High-Pressure Marine & Offshore Platform Applications
Product Overview
The JIS F7421 Forged Steel Globe Valve stands as an exceptional flow control solution tailored for critical and high-stakes applications within the realms of shipbuilding, ship repair, and offshore oil platforms. Precisely manufactured in accordance with the stringent Japanese Industrial Standards (JIS F7421), this valve boasts a forged steel body coupled with stainless steel internal components. This combination endows it with unparalleled pressure-handling capabilities and remarkable corrosion resistance, making it an ideal choice for the harsh marine environment. Moreover, with flange dimensions that strictly adhere to JIS B2220 standards, it guarantees a smooth and seamless integration into marine piping systems across the globe, ensuring compatibility and ease of installation.
Key Features & Advantages
✅ Full Compliance with JIS F7421 & JIS B2220 Standards: This valve strictly meets the requirements of Japanese marine standards, ensuring consistent quality and reliable performance in marine applications.
✅ Forged Steel Construction for Enhanced Strength: The forged steel body offers superior strength and durability, enabling it to withstand high-pressure conditions without compromising its structural integrity, making it well-suited for demanding marine and offshore settings.
✅ Corrosion-Resistant Stainless Steel Internals: The stainless steel stem and disc are highly resistant to corrosion, which significantly extends the valve’s service life, reducing the need for frequent replacements and maintenance.
✅ 20K High Pressure Rating for Demanding Applications: With a 20K pressure rating, this valve is specifically designed to handle the rigorous pressure requirements of marine and offshore applications, ensuring safe and efficient operation.
✅ Multiple Configuration Options (Type S, U, and F): It comes in various design types, namely Type S, U, and F, providing flexibility to meet different installation and operational needs in marine systems.
✅ Ready for Global Certification from Leading Classification Societies: This valve is prepared to obtain certifications from renowned classification societies such as ABS, BV, CCS, RINA, LR, and others, ensuring its compliance with international safety and quality standards.
✅ 24-Hour Expert Technical Support: Our team of experts is available around the clock to provide prompt and professional assistance for all inquiries related to the valve, ensuring smooth operation and troubleshooting.
Technical Specifications
- Design Standard: JIS F7421
- Flange Standard: JIS B2220
- Body Material: Forged Steel
- Internals Material: Stainless Steel (Disc & Stem)
- Pressure Rating: 20K
- Nominal Diameter:
- Type S: 6mm, 10mm
- Type U: 6mm, 10mm
- Type F: 15mm, 20mm, 25mm
Dimensions & Specifications
Type S
| IMPA Code | Size (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | K (mm) | D (mm) | C (mm) | n | h (mm) | t (mm) | H (mm) | B2 (mm) | D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 750601 | 6 | – | 42 | 38 | 51 | 12 | – | – | – | – | – | 125 | 30 | M20×1.5 |
| 750602 | 10 | – | 51 | 45 | 63 | 16 | – | – | – | – | – | 140 | 41 | M20×2 |
Type U
| IMPA Code | Size (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | K (mm) | D (mm) | C (mm) | n | h (mm) | t (mm) | H (mm) | B2 (mm) | D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 750606 | 6 | 84 | 102 | – | – | – | – | – | – | – | – | 125 | 30 | – |
| 750607 | 10 | 102 | 126 | – | – | – | – | – | – | – | – | 140 | 41 | – |
Type F
| IMPA Code | Size (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | K (mm) | D (mm) | C (mm) | n | h (mm) | t (mm) | H (mm) | B2 (mm) | D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 750611 | 15 | 140 | – | – | – | – | 95 | 70 | 4 | 15 | 14 | 180 | – | – |
| 750612 | 20 | 160 | – | – | – | – | 100 | 75 | 4 | 15 | 16 | 205 | – | – |
| 750613 | 25 | 180 | – | – | – | – | 125 | 90 | 4 | 19 | 16 | 225 | – | – |
The description/sizes may be different with goods, please check with us when order.
