JIS F7388 Marine Bronze Globe Valve – High-Pressure 20K Marine Flow Control Solution
Product Overview

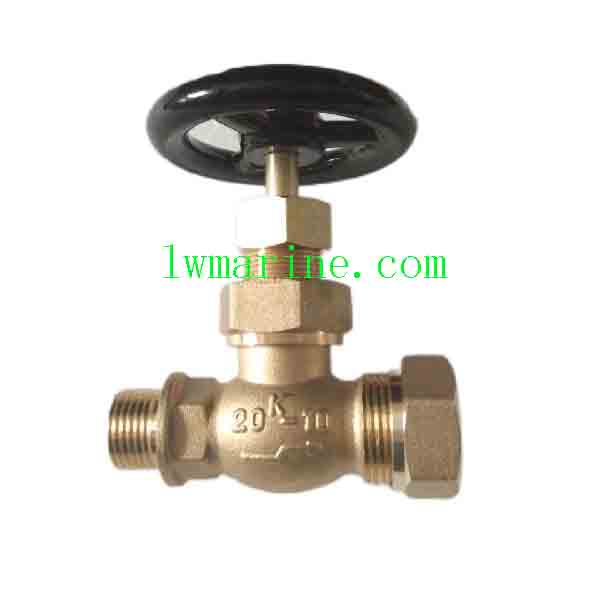

The JIS F7388 Marine Bronze Globe Valve is a precision-engineered, high-pressure flow control valve specifically designed for demanding marine applications in shipbuilding, vessel repair, and offshore platforms. Manufactured to stringent JIS F7400 standards with full compliance to JIS B2220 flange dimensions, this robust valve delivers exceptional performance in critical marine systems where reliability under extreme pressure conditions is essential. Featuring a superior bronze construction and available in multiple configurations, it ensures leak-free operation in the most challenging maritime environments.
Key Features & Benefits
✔ High-Pressure Performance
-
Pressure Rating: 20K for extreme pressure applications
-
Compact Sizes: 6 & 10 mm for precision flow control
-
JIS B2220 Flange Compliance: Ensures perfect system integration
✔ Premium Material Construction
-
Body: Durable cast iron for maximum pressure resistance
-
Stem: Precision brass component for smooth operation
-
Disc: High-quality bronze for excellent sealing and corrosion resistance
-
Material Customization: Client-specified material options available
✔ Dual Configuration Options
-
S Type: Straight pattern design for direct piping connections
-
U Type: Angle pattern design for space-optimized installations
-
Copper & Steel Connections: Multiple connection options available
✔ Certified Marine Quality
-
Manufactured to JIS F7400 quality standards
-
IACS certification available upon request
-
Comprehensive quality control at every production stage
Technical Specifications: JIS F7388 20K Globe Valve Series
S Type (Straight Pattern) Configuration:
| Size | IMPA Code | Pipe Out | Copper Dia | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | K (mm) | d3 | B2 (mm) | H (mm) | D2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 750551 | 8/10 | 10.5 | 32 | 35 | 41 | 12 | M20×1.5 | 30 | 100 | 63 | |
| 10 | 750552 | 15 | 17.3 | 36 | 35 | 48 | 16 | M24×2 | 41 | 115 | 80 |
U Type (Angle Pattern) Configuration:
| Size | IMPA Code | Pipe Out | Copper Dia | Steel | L (mm) | L1 (mm) | B2 (mm) | H (mm) | D2 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 750556 | 8/10 | 10.5 | 64 | 82 | – | 30 | 100 | 63 |
| 10 | 750557 | 15 | 17.3 | 72 | 96 | – | 41 | 115 | 80 |
The description/sizes may be different with goods, please check with us when order.
