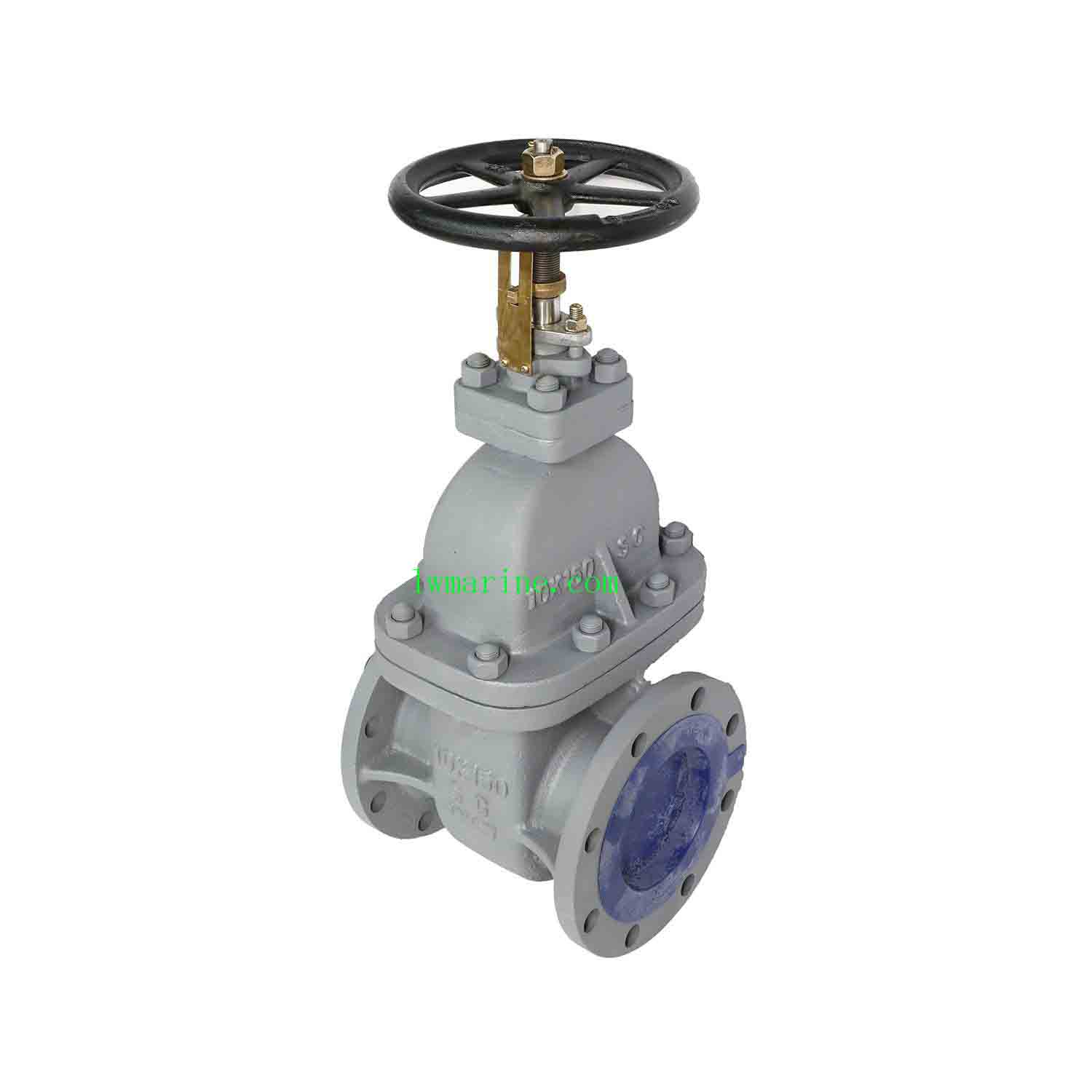

JIS F7366 Gate Valve – Marine-Grade Flow Control Solution for Fuel & Lubrication Systems
Product Overview
The JIS F7366 Gate Valve is a high-performance marine valve specifically engineered for precise flow control in critical shipboard systems. Designed to JIS B2220 flange standards, this robust gate valve ensures reliable operation in fuel oil and lubricating oil piping applications. Manufactured with premium materials and certified by major classification societies, it delivers exceptional sealing performance and durability in demanding maritime environments.
Key Features & Benefits
✔ Premium Material Construction
-
Body: High-strength cast steel for superior pressure resistance
-
Seat: Stainless steel for excellent corrosion resistance and sealing
-
Disc: Stainless steel ensuring long-term operational reliability
-
Stem: Stainless steel providing smooth operation and durability
✔ Comprehensive Certification
-
IACS Certified: CCS, BV, ABS, LR, RINA
-
JIS B2220 Flange Standard Compliance
-
Quality assured for marine applications
✔ Technical Excellence
-
Pressure Rating: 10K
-
Size Range: DN50 to DN400
-
Designed to prevent reflux in critical piping systems
-
Compatible with various flange standards and sealing surfaces
Applications
-
Fuel oil transfer and service piping systems
-
Lubricating oil circulation and distribution lines
-
Marine engine room piping networks
-
Offshore platform fluid handling systems
-
Shipbuilding and vessel repair applications
Technical Specifications: JIS F7366 10K Gate Valve Series
| IMPA Code | Model | L (mm) | D (mm) | C (mm) | Bolt Holes | h (mm) | t (mm) | H (mm) | D2 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 750901 | 7366 10K050 | 200 | 155 | 120 | 4 | 19 | 16 | 300 | 140 |
| 750902 | 7366 10K065 | 220 | 175 | 140 | 4 | 19 | 18 | 350 | 160 |
| 750903 | 7366 10K080 | 230 | 185 | 150 | 8 | 19 | 18 | 400 | 180 |
| 750904 | 7366 10K100 | 250 | 210 | 175 | 8 | 19 | 18 | 450 | 200 |
| 750905 | 7366 10K125 | 270 | 250 | 210 | 8 | 23 | 20 | 520 | 224 |
| 750906 | 7366 10K150 | 290 | 280 | 240 | 8 | 23 | 22 | 580 | 250 |
| 750907 | 7366 10K200 | 310 | 330 | 290 | 12 | 23 | 22 | 700 | 315 |
| 750908 | 7366 10K250 | 340 | 400 | 355 | 12 | 25 | 24 | 840 | 400 |
| 750909 | 7366 10K300 | 380 | 445 | 400 | 16 | 25 | 24 | 960 | 450 |
| 750910 | 7366 10K350 | 420 | 490 | 445 | 16 | 25 | 26 | 1050 | 500 |
| 750911 | 7366 10K400 | 480 | 560 | 510 | 16 | 27 | 26 | 1150 | 560 |
The description/sizes may be different with goods, please check with us when order.
