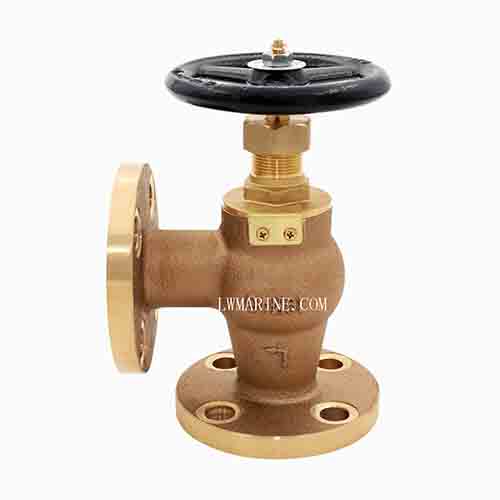

JIS F7347 Marine Bronze Angle Globe Valve – Compact Flow Control for Marine Fuel & Lubrication Systems
Product Overview
The JIS F7347 Marine Bronze Angle Globe Valve is a specialized 90-degree angle valve designed for precise flow control in marine fuel oil and lubricating piping systems. Crafted from premium bronze with a brass stem, this 5K-rated valve offers excellent corrosion resistance and reliable performance in demanding marine environments. Its compact angle design saves space while maintaining JIS B2220 flange compatibility, making it ideal for shipbuilding, vessel repair, and offshore platform applications where efficient piping layouts are crucial.
Key Features & Benefits
-
✅ 90-Degree Angle Design – Space-saving configuration for optimized piping layouts
-
✅ Premium Bronze Construction – Superior corrosion resistance in marine environments
-
✅ Precision Flow Control – Excellent throttling capability for accurate regulation
-
✅ JIS B2220 Flange Compatibility – Seamless integration with standard marine piping
-
✅ 5K Pressure Rating – Ideal for marine fuel and lubrication applications
-
✅ Bubble-Tight Sealing – Positive shut-off prevents leakage in critical systems
-
✅ Multi-Standard Adaptability – Compatible with various flange and sealing standards
Material Composition
| Component | Material | Advantage |
|---|---|---|
| Body & Disc | Bronze | Excellent corrosion resistance and durability |
| Stem | Brass | Smooth operation and reliable performance |
Technical Specifications
-
Nominal Diameter: DN15-DN40
-
Pressure Rating: 5K
-
Standards: JIS F7347, JIS B2220 Flange
-
Media: Fuel Oil, Lubricating Oil, Marine Fluids
-
Applications: Shipbuilding, Ship Repair, Offshore Platforms
Dimension Table
| IMPA Code | Model | L | D | C | No. | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|
| 750511 | 7347 5K15 | 55 | 80 | 60 | 4 | 12 | 9 | 145 | 80 |
| 750512 | 7347 5K20 | 60 | 85 | 75 | 4 | 12 | 10 | 155 | 100 |
| 750513 | 7347 5K25 | 65 | 95 | 75 | 4 | 12 | 10 | 175 | 125 |
| 750514 | 7347 5K32 | 80 | 115 | 90 | 4 | 15 | 12 | 175 | 125 |
| 750515 | 7347 5K40 | 85 | 120 | 95 | 4 | 15 | 12 | 190 | 140 |
The description/sizes may be different with goods, please check with us when order.
