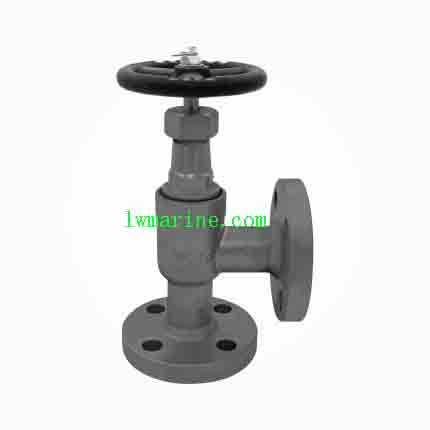

JIS F7337 Forged Steel Angle Globe Valve – 30K High-Pressure Marine Flow Control Solution
Product Overview
The JIS F7337 Forged Steel Angle Globe Valve represents the pinnacle of high-pressure marine valve technology, engineered for extreme conditions in shipbuilding, offshore platforms, and vessel repair operations. Manufactured to rigorous JIS F7400 standards with full JIS B2220 flange compliance, this premium forged steel valve delivers unmatched performance in 30K pressure applications. Featuring dual configuration options and superior stainless steel internals, it ensures absolute reliability in critical marine systems where failure is not an option.
Key Features & Benefits
✔ Extreme Pressure Performance
-
Maximum Pressure Rating: 30K for the most demanding marine applications
-
Dual Configuration Options: Type “S” (6-10mm) and Type “F” (15-25mm)
-
Forged Steel Construction: Superior strength and pressure integrity
✔ Premium Material Engineering
-
Body: High-strength forged steel for maximum pressure resistance
-
Stem & Disc: Stainless steel components for corrosion resistance and durability
-
Custom Material Options: Client-specified material configurations available
✔ Dual Configuration Design
-
Type “S”: Compact design for precision instrumentation applications
-
Type “F”: Standard flange design for general high-pressure services
-
JIS B2220 Flange Compliance: Perfect integration with marine piping systems
✔ Certified Marine Excellence
-
Manufactured to JIS F7400 quality standards
-
IACS certification available upon request
-
Full material traceability and testing documentation
Technical Specifications: JIS F7337 30K Angle Globe Valve Series
Type “S” (Compact Design) Configuration:
| IMPA Code | Size (mm) | L1′ (mm) | L2′ (mm) | L3′ (mm) | H1 (mm) | H2 (mm) | K (mm) | H (mm) | B2 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 750751 | 6 | 42 | 38 | 51 | 28 | 38 | 12 | 115 | 30 |
| 750752 | 10 | 46 | 45 | 58 | 59 | 44 | 16 | 130 | 41 |
Type “F” (Flange Design) Configuration:
| IMPA Code | Size (mm) | L1 (mm) | D (mm) | C (mm) | Bolt Holes | h (mm) | t (mm) | H (mm) | D2 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 750756 | 15 | 90 | 115 | 80 | 4 | 19 | 18 | 175 | 152 |
| 750757 | 20 | 95 | 120 | 85 | 4 | 19 | 18 | 185 | 140 |
| 750758 | 25 | 100 | 130 | 95 | 4 | 19 | 20 | 210 | 140 |
The description/sizes may be different with goods, please check with us when order.
