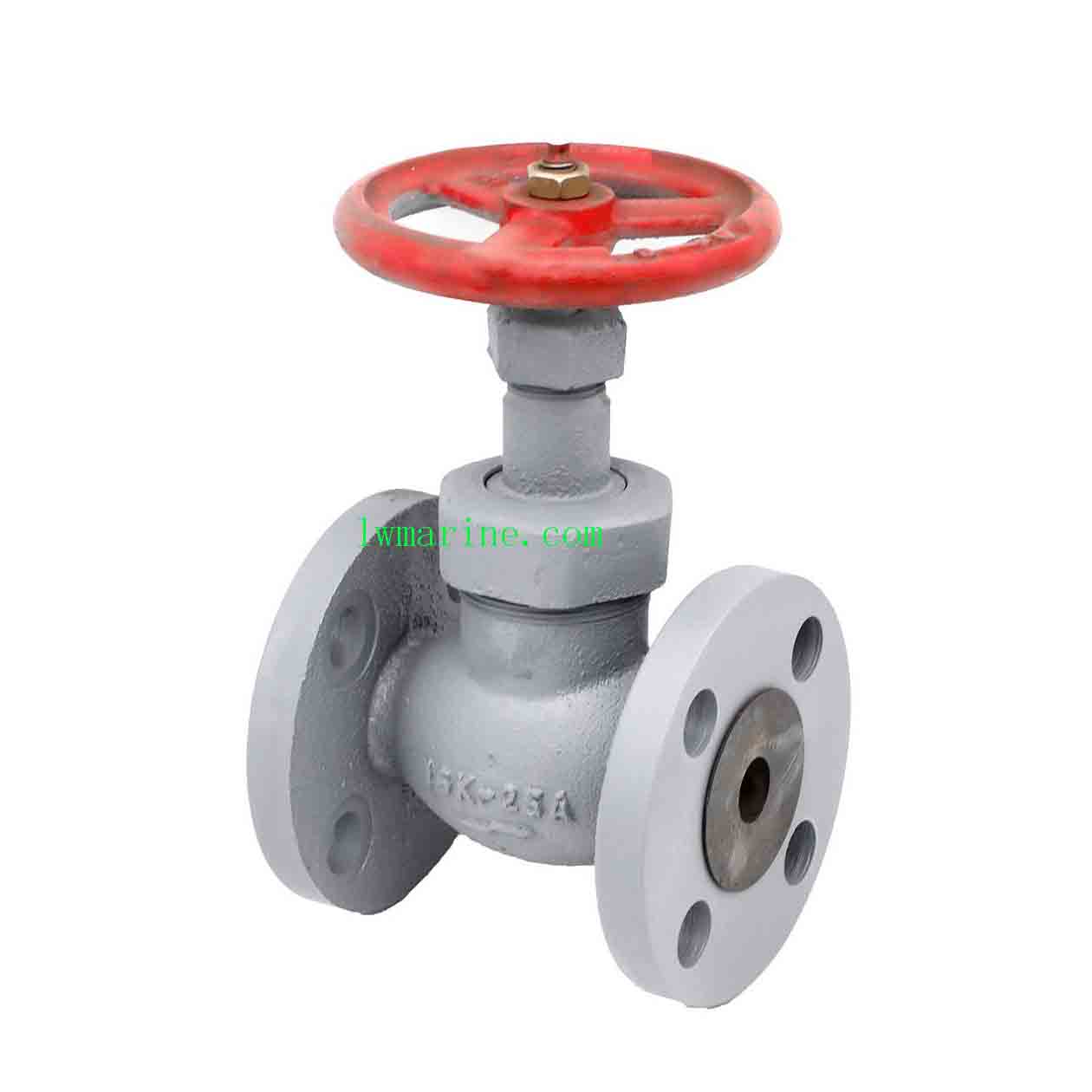

JIS F7323 Marine Ductile Iron Globe Valve | 16K High-Pressure Fuel & Lube Oil Non-Return Valve for Marine Applications
Product Overview
The JIS F7323 Marine Ductile Iron Globe Valve is a precision-engineered flow control solution designed for critical marine fuel oil and lubricating oil piping systems. Manufactured to JIS B2220 flange standards, this high-pressure globe valve ensures reliable shut-off and non-return functionality in demanding shipboard environments. Featuring durable ductile iron construction with corrosion-resistant trim options, it delivers exceptional performance and longevity in controlling and preventing backflow in vital marine fluid systems.
Key Features & Benefits
-
JIS F7323 Certified: Compliant with Japanese Industrial Standards for marine globe valves
-
JIS B2220 Flange Compatibility: Standardized flange dimensions ensure seamless integration with marine piping systems
-
High-Pressure Performance: 16K pressure rating suitable for demanding fuel and lube oil applications
-
Ductile Iron Construction: Superior strength, impact resistance, and durability in corrosive marine environments
-
Corrosion-Resistant Trim Options: Stainless steel (SUS) or bronze disc with SUS or brass stem materials
-
Non-Return Functionality: Effectively prevents backflow in critical fuel and lubricating oil systems
-
OEM/ODM Services: Custom manufacturing available to meet specific project requirements
-
Professional Export Support: Experienced international shipping team ensures smooth delivery worldwide
-
Quality Materials Selection: Premium components meeting domestic and international standards
Material Specification
-
Body: Ductile Iron
-
Disc: Stainless Steel (SUS) / Bronze
-
Stem: Stainless Steel (SUS) / Brass
Technical Specifications
-
Standard: JIS F7323
-
Flange Standard: JIS B2220
-
Nominal Diameter: DN15-DN40
-
Pressure Rating: 16K
-
Valve Type: Globe Valve with Non-Return Function
-
Operation: Manual
Main Dimensions (mm)
| IMPA Code | Model | L | D | C | Bolt Holes |
|---|---|---|---|---|---|
| 750321 | 7323 16K15 | 110 | 95 | 70 | 4×φ15 |
| 750322 | 7323 16K20 | 120 | 100 | 75 | 4×φ15 |
| 750323 | 7323 16K25 | 130 | 125 | 90 | 4×φ15 |
| 750324 | 7323 16K32 | 160 | 135 | 100 | 4×φ15 |
| 750325 | 7323 16K40 | 180 | 140 | 105 | 4×φ19 |
The description/sizes may be different with goods, please check with us when order.
