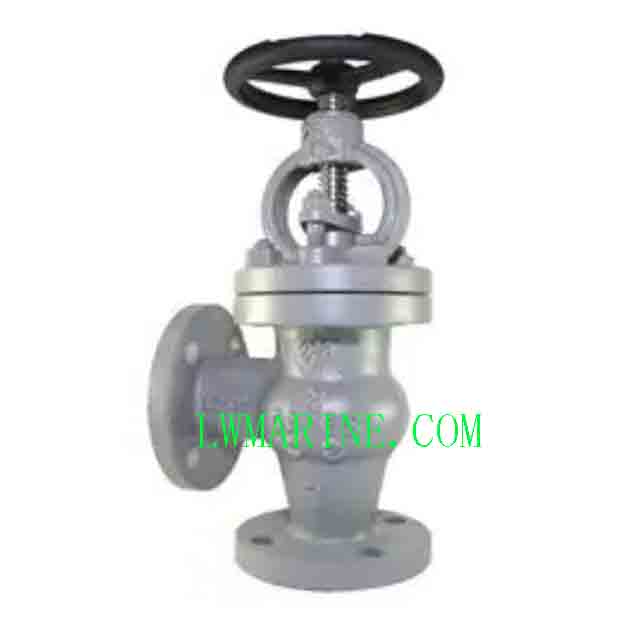

JIS F7314 Marine Cast Steel Angle Globe Valve

JIS F7314 Marine Cast Steel Angle Globe Valve – High-Temperature 20K Pressure Rated Flow Control Solution

Product Overview
The JIS F7314 Marine Cast Steel Angle Globe Valve is a premium-grade flow control solution engineered for high-temperature marine applications in fuel oil and lubrication systems. Manufactured to rigorous JIS F7400 standards with full JIS B2220 flange compliance, this robust angle globe valve operates reliably at temperatures up to 205°C. Featuring customizable stainless steel or bronze internals and a 20K pressure rating, it delivers exceptional performance in demanding shipboard and offshore environments where thermal stability and pressure containment are critical.

Key Features & Benefits

✔ High-Temperature Performance

• Operating Temperature: Up to 205°C continuous service

• Pressure Rating: 20K for high-pressure marine applications

• Size Range: ND32 to ND250 comprehensive coverage

• Flange Standard: JIS B2220 compliance for perfect system integration

✔ Premium Material Options

• Body: High-grade cast steel for superior thermal stability

• Seat, Disc & Stem: Optional SUS stainless steel or bronze internals

• Material Flexibility: Customer-selected materials for specific application needs

• Corrosion Resistance: Excellent performance in marine environments

✔ Angle Design Advantages

• 90-degree configuration reduces piping complexity and saves space

• Optimal flow control with positive shutoff capability

• Easy maintenance and servicing access

✔ Quality Certified Manufacturing

• Manufactured according to JIS F7400 quality standards

• Premium material selection meeting international standards

• Rational structure design with aesthetic appearance

• Full compliance with domestic and foreign marine requirements

---

Technical Specifications: JIS F7314 20K Angle Globe Valve Series

The description/sizes may be different with goods, please check with us when order.
