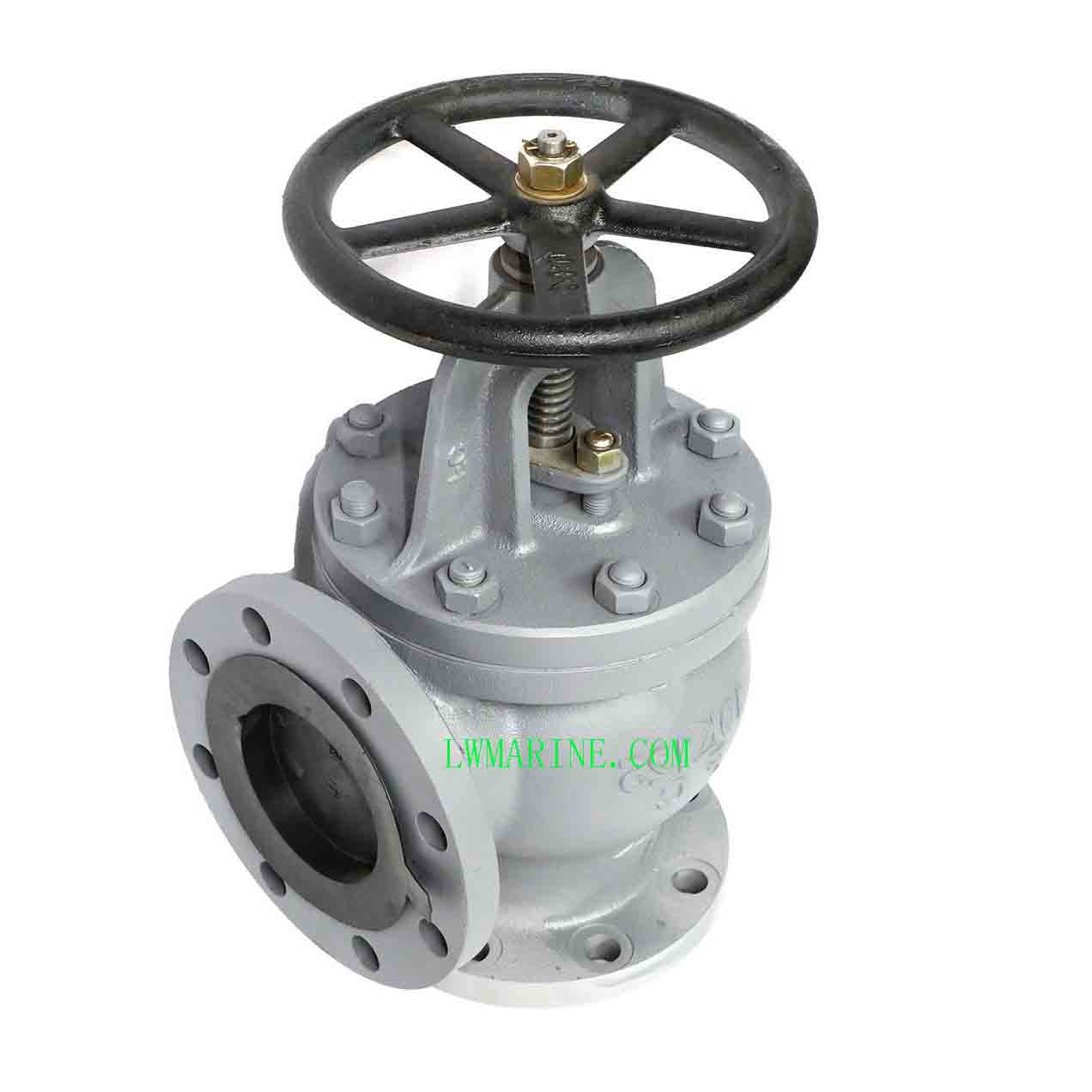

JIS F7306 Marine Cast Iron Angle Globe Valve

JIS F7306 Marine Cast Iron Angle Globe Valve

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

JIS F7306 Marine Cast Iron Angle Globe Valve | 5K Cast Iron Angle Valve for Marine Fuel, Lube Oil & Water Systems

Product Overview

The JIS F7306 Marine Cast Iron Angle Globe Valve is a heavy-duty flow control solution designed for marine fuel oil, lubricating oil, fresh water, and feed water systems aboard ships. This angle pattern globe valve features a robust cast iron body with bronze trim and gland packing, ensuring reliable performance and leak-free operation in demanding marine environments. Compliant with Japanese Industrial Standards, it offers excellent durability and corrosion resistance for various shipboard applications.

Key Features & Benefits

  • JIS F7306 Certified: Compliant with Japanese Industrial Standards for marine valve applications

  • Angle Pattern Design: 90-degree configuration saves space and simplifies piping layouts

  • Durable Construction: Cast iron body with bronze seating and brass stem for corrosion resistance

  • 5K Pressure Rating: Suitable for marine fuel, lube oil, and water systems

  • Gland Packing System: Ensures leak-free operation and easy maintenance

  • Wide Size Range: ND50 to ND500 sizes accommodate various flow requirements

  • OEM Services Available: Custom manufacturing, private labeling, and sample development supported

  • Flexible Order Options: Sample and small quantity orders accepted

  • Responsive Support: 24-hour response time for all technical inquiries

Material Specification

  • Body: Cast Iron

  • Seat: Bronze

  • Disc: Bronze

  • Stem: Brass

Technical Specifications

  • Standard: JIS F7306

  • Nominal Diameter: ND50-ND500

  • Pressure Rating: 5K

  • Valve Type: Angle Globe Valve with Gland Packing

  • Operation: Manual

  • Media: Fuel oil, lubricating oil, fresh water, feed water

Main Dimensions (mm)

IMPA Code Model L1 D C No. h t H D2
750216 F7306 5K050 100 130 105 4 15 16 240 160
750217 F7306 5K065 115 155 130 4 15 18 255 180
750218 F7306 5K080 130 180 145 4 19 18 265 180
750219 F7306 5K100 150 200 165 8 19 20 310 224
750220 F7306 5K125 170 235 200 8 19 20 330 250
750221 F7306 5K150 190 265 230 8 19 22 380 280
750222 F7306 5K200 220 320 280 8 23 24 450 315
750223 F7306 5K250 275 385 345 12 23 26 540 355
750224 F7306 5K300 310 430 390 12 23 28 610 400
750225 F7306 5K350 360 480 435 12 25 30 690 500
750226 F7306 5K400 395 540 495 16 25 30 770 630
– F7306 5K450 440 605 555 16 25 30 835 630
– F7306 5K500 485 655 605 20 25 32 915 710

The description/sizes may be different with goods, please check with us when order.
