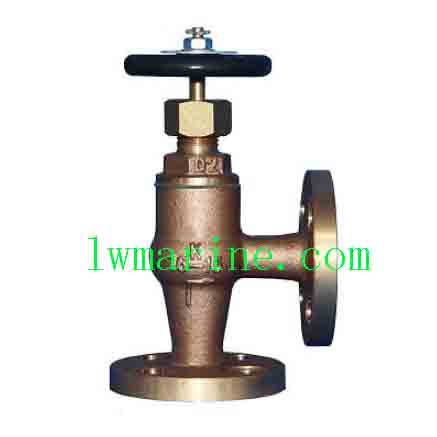

JIS F7304 Marine Bronze Angle Valve – 16K High-Pressure Bronze Angle Valve for Marine Applications
Product Overview
The JIS F7304 Marine Bronze Angle Valve is a premium-quality flow control solution specifically engineered for marine fuel oil, lubricating oil, and water piping systems. Manufactured to exacting JIS B2220 flange standards, this robust bronze angle valve operates reliably at temperatures up to 120°C with a 16K pressure rating. Its compact angle design and all-bronze construction make it ideal for space-constrained marine environments where corrosion resistance and reliability are paramount.
Key Features & Benefits
✔ Premium Bronze Construction
-
Body & Disc: High-grade bronze for superior corrosion resistance in marine environments
-
Stem: Durable brass component for smooth operation and long service life
-
Material Quality: Well-selected materials meeting domestic and international standards
✔ High-Pressure Performance
-
Pressure Rating: 16K for demanding marine applications
-
Temperature Rating: Suitable for services up to 120°C
-
Size Range: ND15 to ND40 for various piping requirements
-
Flange Standard: JIS B2220 compliance for perfect system integration
✔ Angle Design Advantages
-
90-degree configuration saves space in compact engine rooms
-
Optimal flow characteristics with minimal pressure drop
-
Easy installation and maintenance access
✔ Quality & Customization
-
OEM Services: Custom manufacturing with client drawings or samples
-
Private Labeling: Accept customer branding and labeling
-
Quality Assurance: Rigorous quality control throughout manufacturing
-
Aesthetic Design: Reasonable structure with beautiful appearance
Technical Specifications: JIS F7304 16K Bronze Angle Valve Series
| IMPA Code | Model | L (mm) | D (mm) | C (mm) | Bolt Holes | h (mm) | t (mm) | H (mm) | D2 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 750151 | F7304 16K15 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 80 |
| 750152 | F7304 16K20 | 75 | 100 | 75 | 4 | 15 | 14 | 130 | 100 |
| 750153 | F7304 16K25 | 85 | 125 | 90 | 4 | 19 | 14 | 145 | 125 |
| 750154 | F7304 16K32 | 95 | 135 | 100 | 4 | 19 | 16 | 150 | 125 |
| 750155 | F7304 16K40 | 100 | 140 | 105 | 4 | 19 | 16 | 165 | 140 |
The description/sizes may be different with goods, please check with us when order.
