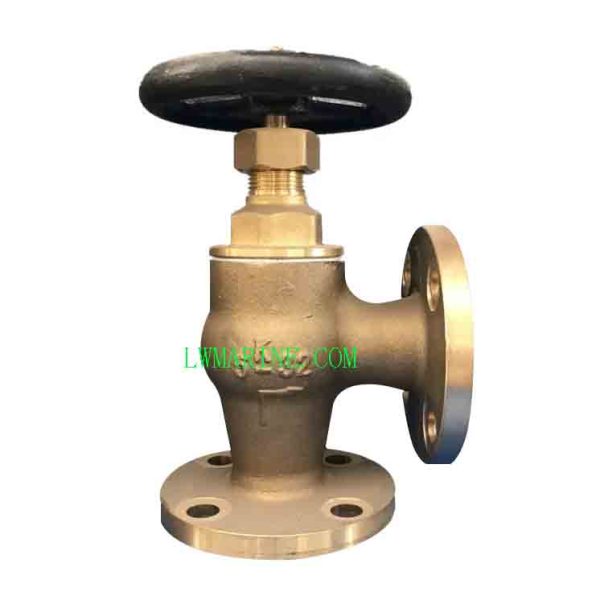

Marine Bronze Globe Valve | JIS F7302 5K Certified for Medium Piping Systems up to 120°C
Product Overview
Our JIS F7302 marine bronze globe valve is engineered for reliable backflow prevention and flow control in shipboard piping systems operating at temperatures up to 120°C. Featuring a robust bronze and brass construction, this valve ensures exceptional corrosion resistance and durability in various marine media applications. Customizable to your specific working conditions, it offers versatile performance for numerous marine and industrial systems.
Key Features & Benefits
-
JIS F7302 Compliance: Manufactured to Japanese Industrial Standards for marine valves
-
Temperature Resistance: Suitable for media temperatures up to 120°C
-
5K Pressure Rating: Ideal for low to medium pressure piping systems
-
Premium Material Construction: Bronze seat and disc with brass stem for superior corrosion resistance
-
IACS Certification Available: CCS, ABS, BV, LR, RINA and other class approvals
-
Custom Manufacturing: All specifications adaptable to your working conditions
-
OEM/ODM Services: Accept custom branding and special requirements
Technical Specifications
-
Standard: JIS F7302
-
Nominal Diameter: ND15 to ND65
-
Pressure Rating: 5K
-
Max Temperature: 120°C
-
Seat Material: Bronze
-
Disc Material: Bronze
-
Stem Material: Brass
Applications
-
Marine cooling water systems
-
Fuel and lubricating oil pipelines
-
General service water lines
-
Auxiliary machinery systems
-
Industrial fluid handling applications
Quality Assurance
-
Comprehensive Inspection: 100% testing through all production procedures
-
IACS Certification: Multiple classification society approvals available
-
Custom Solutions: All reasonable technical requirements accepted
-
Quality Materials: Premium bronze and brass components
Dimension Chart (IMPA Code Reference)
| IMPA Code | Model | L | D | C | No. | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|
| 750131 | F7302 5K15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 750132 | F7302 5K20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 |
| 750133 | F7302 5K25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 |
| 750134 | F7302 5K32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 |
| 750135 | F7302 5K40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 |
| 750136 | F7302 5K50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 140 |
| 750137 | F7302 5K65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 160 |
Certification & Compliance
-
IACS Options: CCS, ABS, BV, LR, RINA
-
International Standards: Meets global marine requirements
-
Custom Compliance: Adaptable to specific regulatory needs
The description/sizes may be different with goods, please check with us when order.
