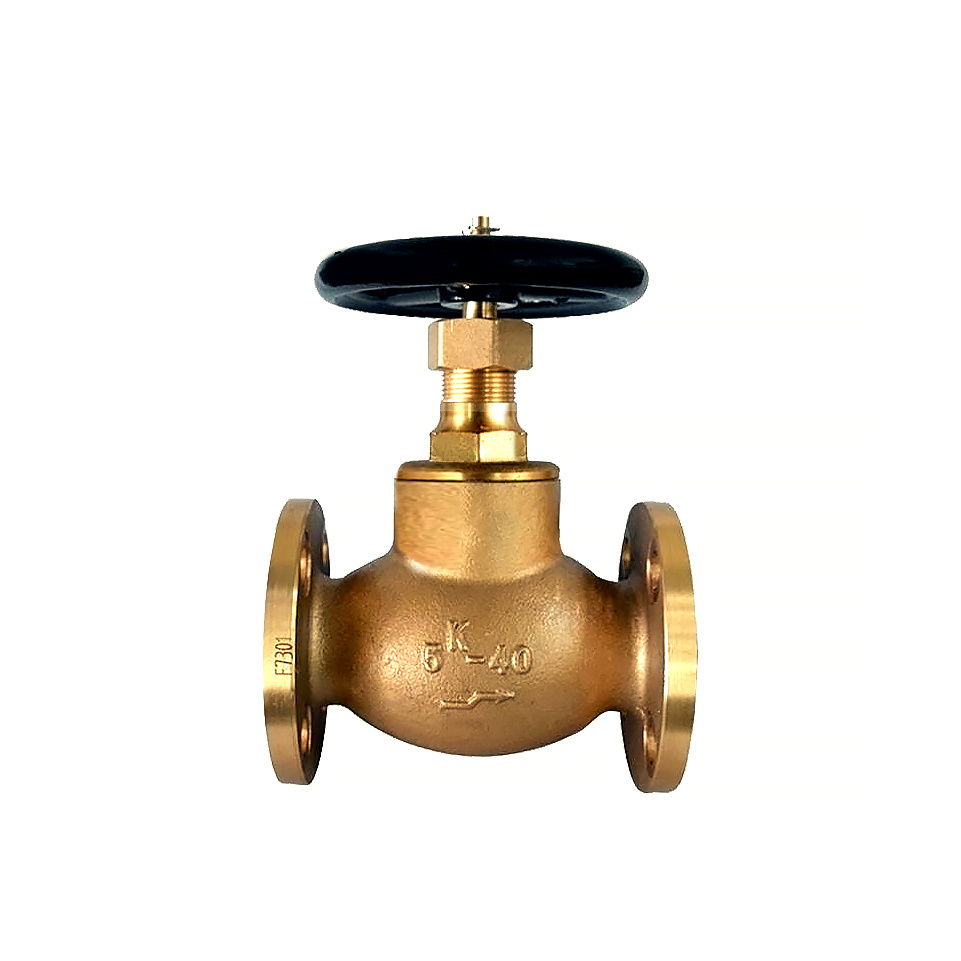

JIS F7301 Marine Bronze Globe Valve

JIS F7301 Marine Bronze Globe Valve

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

JIS F7301 Marine Bronze Globe Valve – 5K Bronze Stop Valve for Marine Applications

Overview

Our JIS F7301 Marine Bronze Globe Valve is a premium bronze stop valve specifically designed for marine fluid control applications. Manufactured to exact Japanese Industrial Standard F7301 specifications, this 5K pressure rated globe valve features all-bronze construction with brass stem, providing exceptional corrosion resistance in seawater environments. Ideal for shipbuilding and ship repair projects, this valve ensures reliable performance in various marine systems while meeting international classification society standards.

Key Features & Benefits

  • JIS F7301 Standard Compliance: Precision-engineered to Japanese Industrial Standard specifications

  • All-Bronze Construction: Superior corrosion resistance for marine environments

  • 5K Pressure Rating: Suitable for low to medium pressure applications (50 psi)

  • Precise Flow Control: Excellent throttling capability for accurate regulation

  • Compact Design: Space-saving configuration ideal for marine installations

  • Bubble-Tight Shut-off: Reliable sealing performance in critical applications

  • Classification Certified: CCS, BV, ABS, LR certificates available

  • Marine Optimized: Specifically designed for shipbuilding and repair applications

Technical Specifications

  • Design Standard: JIS F7301

  • Pressure Rating: 5K (50 psi)

  • Temperature Range: -20°C to 200°C

  • Body Material: Bronze (Marine Grade)

  • Disc Material: Bronze

  • Stem Material: Brass

  • Nominal Diameter: ND15 to ND65 (½” to 2½”)

  • Operation: Manual Handwheel Operation

  • Media: Sea Water, Fresh Water, Oil, Air, Utility Fluids

Certification & Quality Assurance

  • Classification Society Certificates: CCS, BV, ABS, LR available

  • Material Certification: Full traceability of bronze and brass components

  • Quality Control: 100% inspection through all production procedures

  • Testing Standards: Hydrostatic and shell testing per JIS requirements

  • Quality System: ISO 9001 compliant manufacturing process

Dimension Table (JIS F7301 5K Standard)

IMPA Code Model L D C Bolt Holes h t H D2
750121 F7301 5K15 100 80 60 4 12 9 130 80
750122 F7301 5K20 110 85 65 4 12 10 140 100
750123 F7301 5K25 120 95 75 4 12 10 160 125
750124 F7301 5K32 140 115 90 4 15 12 170 125
750125 F7301 5K40 160 120 95 4 15 12 190 140
750126 F7301 5K50 210 130 105 4 15 14 235 140
750127 F7301 5K65 250 155 130 4 15 14 260 160

The description/sizes may be different with goods, please check with us when order.
