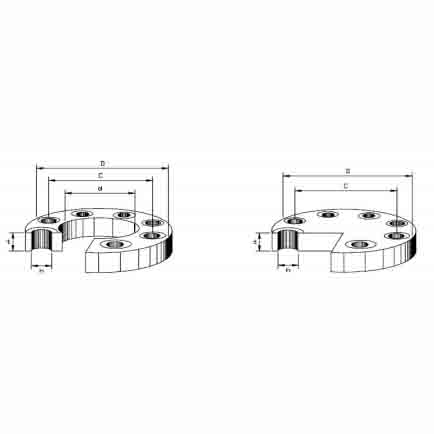

JIS B2220 – Flanges 5K & 10K

Available in Carbon Steel and 316L Stainless Steel

JIS 5K
Size d D C No. h t SO BL
010 17.8 75 55 4 12 9 0.27 0.30
015 22.2 80 60 4 12 9 0.30 0.40
020 27.7 85 65 4 12 10 0.37 0.50
025 34.5 95 75 4 12 10 0.45 0.60
032 43.2 115 90 4 15 12 0.78 0.90
040 49.1 120 95 4 15 12 0.83 1.00
050 61.1 130 105 4 15 14 1.07 1.40
065 77.1 155 130 4 15 14 1.49 2.00
080 90.0 180 145 4 19 14 1.99 2.70
090 102.6 190 155 4 19 14 2.09 3.00
100 115.4 200 165 8 19 16 2.39 3.70
125 141.2 235 200 8 19 16 3.23 5.20
150 166.6 265 230 8 19 18 4.41 7.50
175 192.1 300 260 8 23 18 5.51 9.50
200 218.0 320 280 8 23 20 6.33 12.20
250 269.5 385 345 12 23 22 9.45 19.30
300 321.0 430 390 12 23 22 10.30 24.30
350 358.1 480 435 12 25 24 14.00 33.20
400 409.0 540 495 16 25 24 16.90 41.90
450 460.0 605 555 16 25 24 21.60 53.00
500 511.0 655 605 20 25 24 23.10 61.90
550 562.0 720 665 20 27 26 30.30 81.20
600 613.0 770 715 20 27 26 32.70 93.20
650 664.0 825 770 24 27 26 35.90 106.90
700 715.0 875 820 24 27 26 38.20 120.60
750 766.0 945 880 24 33 28 48.70 150.50
800 817.0 995 930 24 33 28 51.60 167.40
900 919.0 1095 1030 24 33 30 61.10 218.10
1000 1021.0 1195 1130 28 33 32 70.50 277.30
JIS 10K
Size d D C No. h t SO BL
017 17.8 90 65 4 15 12 0.52 0.54
022 22.2 95 70 4 15 12 0.57 0.61
027 27.7 100 75 4 15 14 0.73 0.79
034 34.5 125 90 4 19 16 1.13 1.24
043 43.2 135 100 4 19 16 1.48 1.66
049 49.1 140 105 4 19 16 1.56 1.81
061 61.1 155 120 4 19 16 1.88 2.23
077 77.1 175 140 4 19 18 2.60 3.24
090 90.0 185 150 8 19 18 2.61 3.50
102 102.6 195 160 8 19 18 2.76 4.00
115 115.4 210 175 8 19 18 3.14 4.60
141 141.2 250 210 8 23 20 4.77 7.30
166 166.6 280 240 8 23 22 6.34 10.10
192 192.1 302 265 12 23 22 6.82 11.80
218 218.0 330 290 12 23 22 7.53 14.00
269 269.5 355 315 12 25 24 11.80 22.70
321 321.0 445 400 16 25 24 13.50 29.50
358 358.1 490 445 16 25 26 16.40 37.10
409 409.0 560 510 16 27 28 23.00 52.50
460 460.0 620 565 20 27 30 29.50 68.80
511 511.0 675 620 20 27 30 33.50 82.10
562 562.0 745 680 20 33 32 43.10 105.80
613 613.0 795 730 24 33 32 45.70 120.20
664 664.0 845 780 24 33 34 52.10 145.00
715 715.0 905 840 24 33 34 59.50 167.20
766 766.0 970 900 24 33 36 73.20 204.20
817 817.0 1020 950 28 33 36 76.40 225.20
919 919.0 1120 1050 28 33 38 89.40 288.40
1021 1021.0 1130 1080 28 33 40 109.20 367.70

Note: The description may be different with the product, please contact us for quotation.
