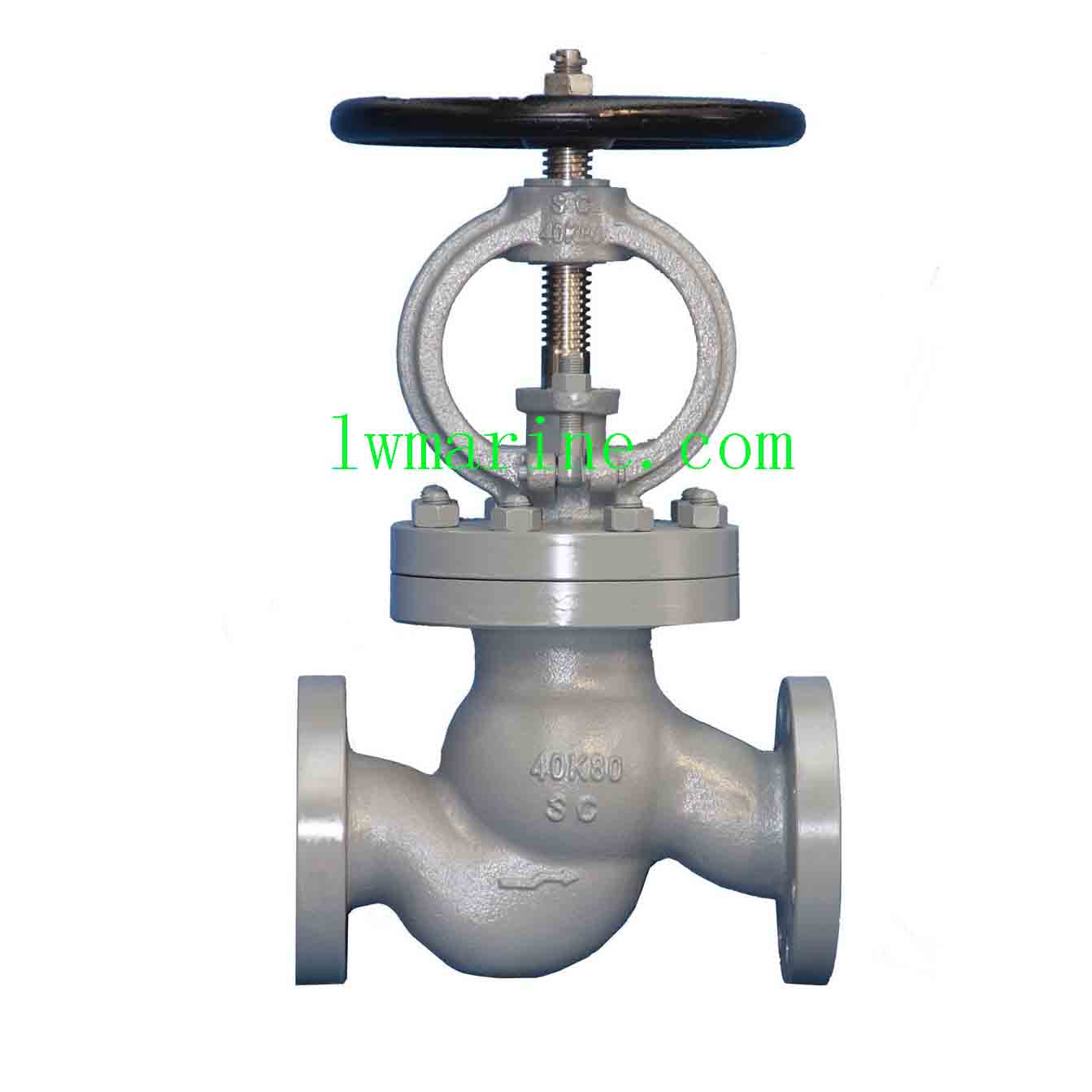

JIS 40K Forged Steel Marine Valves – High Pressure Globe & Angle Valves for Ships
Overview
Our JIS 40K Forged Steel Marine Valves are premium high-pressure valves designed for critical applications in demanding marine environments. Manufactured to exacting Japanese Industrial Standard (JIS) specifications, these forged steel high-pressure valves provide exceptional strength and reliability for shipboard systems operating under extreme conditions. Available as globe valves and angle globe valves, they are ideal for high-pressure fluid control in commercial vessels and offshore applications.
Key Features & Benefits
-
JIS 40K Pressure Rating: Designed for high-pressure applications up to 40K rating (approximately 400 psi)
-
Forged Steel Construction: Superior strength and durability compared to cast alternatives, ideal for high-pressure services
-
High-Temperature Capability: Suitable for steam, high-temperature fluids, and critical shipboard systems
-
Compact Design: Space-saving configuration ideal for marine engine rooms and tight spaces
-
Reliable Performance: Precision machining ensures leak-proof operation and long service life
-
Multiple Configuration Options: Available in straight globe (JIS F7329) and angle globe (JIS F7330) designs
-
Full Certification: Manufactured to meet ABS, BV, CCS, LR, RINA and other IACS member requirements
-
OEM & Customization Support: Complete OEM services available with custom branding and specifications
Applications
-
High-Pressure Steam Systems
-
Main Engine Steam Service Lines
-
Boiler Feed and Steam Discharge Systems
-
High-Pressure Fuel Oil Systems
-
Hydraulic Systems
-
Compressed Air Systems (High Pressure)
-
Critical Shipboard Process Systems
-
Offshore Platform High-Pressure Applications
Product Range
-

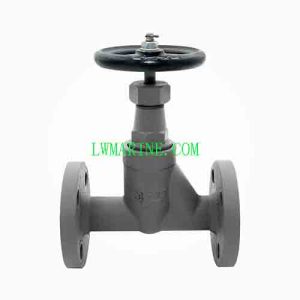

JIS F7329: Forged Steel Globe Valve (Straight Pattern)
-
JIS F7330: Forged Steel Angle Globe Valve (90° Pattern)
Technical Specifications
-
Pressure Rating: JIS 40K (High Pressure)
-
Body Material: Forged Steel
-
Design Standard: JIS (Japanese Industrial Standard)
-
Nominal Diameter: 6-10mm, 15-25mm (¼” to 1″)
-
Media: Air, Steam, Gas, Oil, High-Temperature Fluids
-
Temperature Range: -20°C to 425°C
-
End Connections: Screwed, Socket Weld, or Flanged
Certification & Quality Assurance
-
IACS Certificates: ABS, BV, CCS, LR, RINA
-
Material Certificates: 3.1/3.2 available
-
Testing: Hydrostatic test, shell test, seat test per JIS standards
-
Quality System: ISO 9001 compliant manufacturing process
-
Non-Destructive Testing: MPI/DPI available upon request
The description/sizes may be different with goods, please check with us when order.
