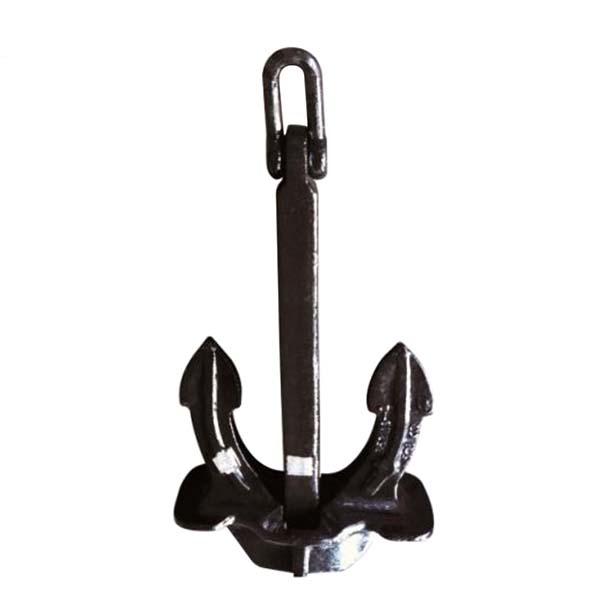

Japan Stockless Anchor

Japan Stockless Anchor (JIS Standard)

Product Overview

The Japan Stockless Anchor is a high-performance marine anchoring system manufactured from ZG200-400C cast steel in compliance with JIS F3301-1980 standards. Its innovative stockless design offers superior operational efficiency for modern commercial vessels.

Key Features & Benefits

Advanced Stockless Design

Streamlined profile for optimal seabed penetration
Eliminates traditional stock for reduced snagging risk
Enhanced storage and retrieval efficiency

Heavy-Duty Construction

Manufactured from premium ZG200-400C cast steel
Precision-engineered to JIS specifications

Operational Advantages

Reliable holding power in diverse seabed conditions
Ideal for frequent anchoring operations
Reduced deck space requirements

Certified Quality

Meets all Japanese Industrial Standards (JIS)
Approved by major classification societies

Recommended Applications

Commercial cargo vessels
Oil tankers
Container ships
Large workboats

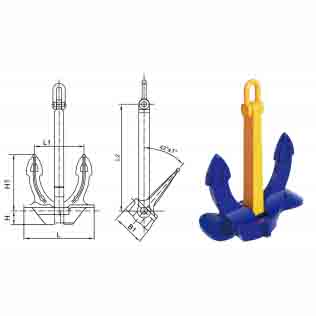

Specification

Weight	H	H1	H2	L	L1	L2
(KG)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
180	111	480	280	650	459	910
240	122	530	310	720	510	1010
300	131	570	331	770	540	1080
360	139	610	353	820	580	1150
420	146	640	370	860	610	1200
480	153	670	387	900	640	1260
570	162	700	408	950	670	1330
660	170	740	430	1000	710	1440
780	180	780	456	1060	750	180
900	189	820	477	1110	780	1550
1020	197	860	500	1160	820	1620
1140	204	890	520	1200	850	1680
1290	212	920	540	1250	880	1750
1440	221	960	560	1300	920	1820
1590	228	990	580	1340	950	1880
1740	235	1020	600	1380	980	1930
1920	243	1060	620	1430	1010	2000
2100	250	1090	640	1470	1040	2060
2280	257	1120	650	1510	1070	2110
2460	264	1150	670	1550	1100	2170
2640	270	1180	690	1590	1120	2230
2850	277	1210	700	1630	1150	2280
3060	284	12140	720	1670	1180	2340
3300	291	1270	740	1710	1210	2390
3540	298	1290	750	1750	1240	2450
3780	304	1320	770	1790	1260	2510
4050	311	1350	790	1830	1290	2560
4320	318	1380	800	1870	1320	2620
4590	325	1410	820	1910	1350	2670
4890	332	1440	840	1950	1380	2730
5250	340	1480	860	2000	1410	2800
5610	347	1510	880	2040	1440	2860
6000	355	1540	900	2090	1480	2930
6450	364	1580	920	2140	1510	3000
6900	372	1620	940	2190	1550	3070
7350	380	1660	960	2260	1600	3140
7800	388	1680	980	2280	1610	3190
8300	396	1720	1000	2330	1650	3260
8700	403	1750	1020	2380	1670	3320
9300	411	1790	1040	2420	1710	3390
9900	420	1820	1060	2470	1740	3460
10500	430	1880	1090	2540	1800	3530
11100	430	1880	1090	2540	1800	3600
11700	445	1945	1130	2630	1855	3650
12300	445	1945	1130	2630	1855	3710
12900	453	1975	1170	2670	1885	3770
13500	453	1975	1170	2670	1885	3840
14100	473	2050	1200	2780	1960	3890
14700	479	2080	1210	2820	1990	3950
15400	486	2110	1230	2860	2020	4000
16100	493	2140	1250	2900	2050	4060
16900	500	2180	1270	2950	2080	4130
17800	510	2210	1290	3000	2120	4200
18800	520	2260	1320	3060	2160	4280
20000	530	2300	1340	3120	2200	4370
21500	540	2360	1380	3200	2260	4480
23000	560	2140	1410	3270	2310	4580
24500	570	2460	1440	3340	2360	4680
26000	580	2520	1470	3410	2410	4770
27500	590	2560	1490	3470	2450	4860
29000	600	2610	1520	3530	2490	4840
31000	640	2660	1550	3610	2550	5050
33000	630	2720	1590	3690	2610	5170
35500	640	2790	1630	3780	2670	5290
38500	660	2860	1670	3880	2740	5430
42000	680	2950	1720	4000	2820	5600
46000	700	3040	1770	4120	2910	5770
