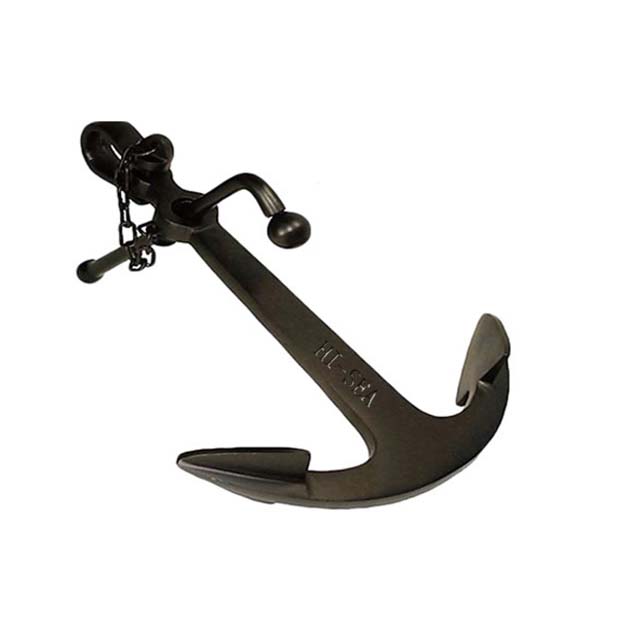

Japan Stock Anchor (JIS Standard)
Product Overview
The Japan Stock Anchor (JIS) is a high-performance marine anchor approved by major classification societies. Featuring a one-piece cast construction (shank and head integrated), it delivers superior holding power while maintaining stability in various seabed conditions.
Key Features & Applications
✔ Integrated Design
-
Single-cast shank and head for enhanced durability
-
High grab-to-weight ratio for reliable holding
✔ Operational Advantages
-
Excellent seabed penetration
-
Stable performance (resists flipping)
-
Cost-effective anchoring solution
✔ Recommended For
-
Small to medium vessels
-
Sailboats
-
Fishing boats
-
Workboats
Note: Not recommended for large vessels in shallow waters due to potential hull contact risk.
Specifications
-
Standards: JIS certified
-
Approvals: Major classification societies
-
Materials: High-grade cast steel
Parameters:
| Weight | Size(mm) | ||
| (kg) | L | H | B |
| 500 | 2065 | 2000 | 1350 |
| 700 | 2335 | 2260 | 1510 |
| 750 | 2342 | 2310 | 1560 |
| 1000 | 2637 | 2550 | 1700 |
| 1500 | 2960 | 2890 | 1950 |
| 2000 | 3272 | 3160 | 2140 |
| 3000 | 3555 | 3630 | 2650 |
| 3500 | 3820 | 3810 | 2570 |
| 4000 | 4135 | 4000 | 2920 |
| 5000 | 4470 | 4310 | 3140 |
| 6000 | 4740 | 4580 | 3330 |
| 7000 | 4980 | 4820 | 3530 |
| 8000 | 5215 | 5040 | 3620 |
The description/sizes may be different with goods, please check with us when order.
