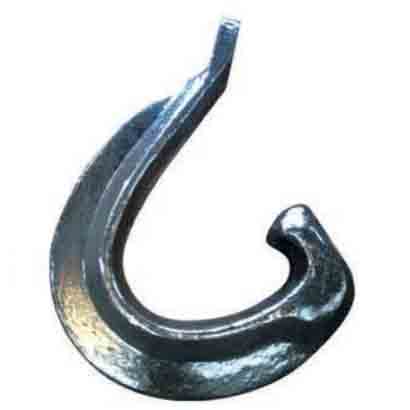

J Type Chaser Hook

The J Type Chaser Hook is expertly designed to simplify anchor retrieval by securely engaging the anchor shackle and locking onto the chain link near the anchor head. This specialized tool ensures smooth vertical recovery, significantly reducing strain on the windlass and minimizing wear on the anchor chain during critical retrieval operations.

How the J Type Chaser Hook Works

The J-Lock Chaser is deployed from an anchor handling vessel and towed along the mooring catenary until it reaches the embedded anchor. Its unique design features:

Feature	Function
Locking Mechanism	Slides effortlessly into position and firmly grips the chain
Directional Engagement	Locks automatically when the winch pull direction is reversed
Vertical Recovery	Ensures straight-line pull for clean anchor breakout
Chain-Friendly Design	Protects anchor chains from excessive wear during retrieval

Critical Applications

The J-Lock Chaser is specifically designed for recovering embedded anchors, particularly deep-penetration twin shank anchors that may be difficult to retrieve using conventional methods. It is essential for:

Offshore Drilling Operations: Recovering anchors from MODUs and drill ships
Construction Projects: Retrieving temporary mooring anchors
Salvage Operations: Anchor recovery from seabed
Deepwater Mooring Systems: Where anchors embed deeply

J – CHASER HOOK

Specification Table

Model No.	Size (mm) – A	Size (mm) – B	Size (mm) – D	Size (mm) – E	Size (mm) – G	Size (mm) – H
10T	782	566	229	105	41	33
20T	1040	759	307	140	55	45
30T	1219	882	357	163	64	52
40T	1267	917	371	170	66	60
50T	1563	1131	458	209	82	67
75T	1912	1384	560	256	100	82
110T	2438	1829	699	306	124	86
130T	2438	1829	699	320	124	86
150T	2528	1832	740	338	132	108
250T	2390	1730	720	350	180	145

Attention please: The description may be different with the goods, please contact us for confirmation.
