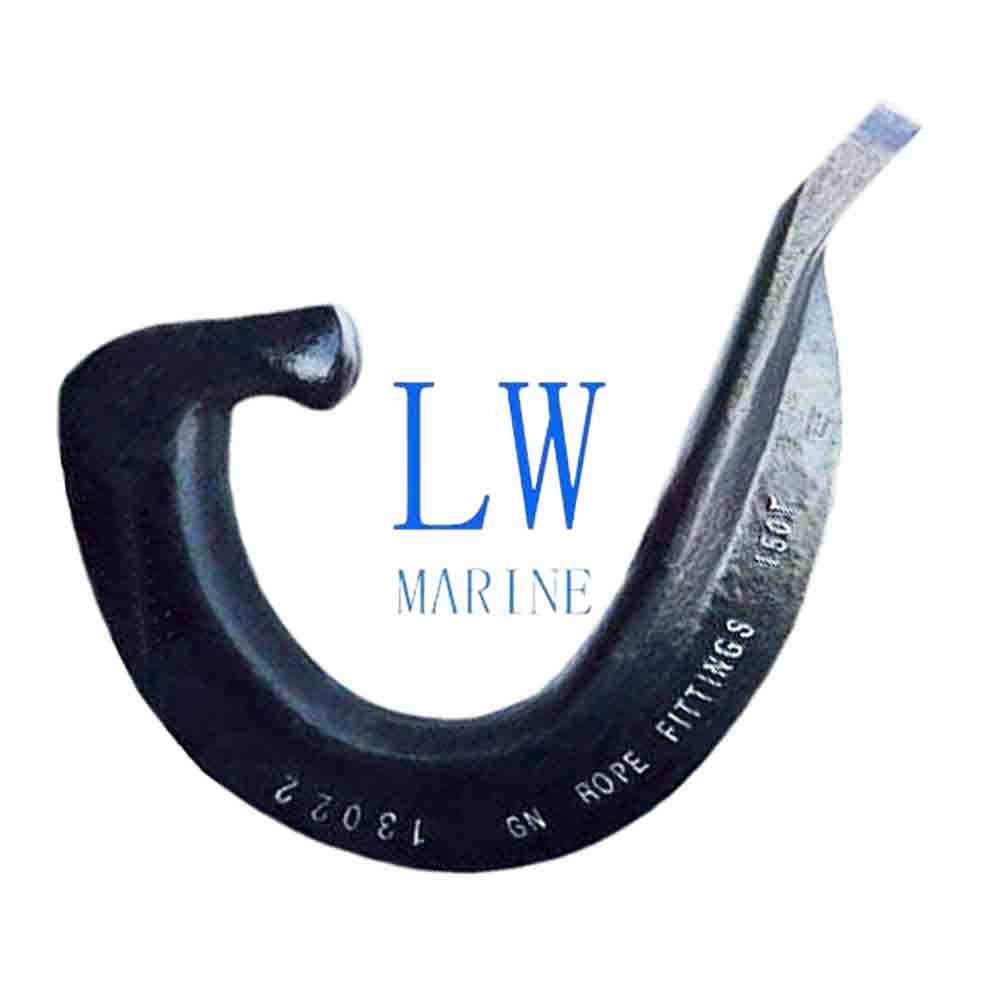

J Chaser Hook – Professional-Grade Anchor Retrieval Solution
Efficient Anchor Recovery for Marine Operations
The J Chaser Hook is specifically designed for safe and effective anchor recovery in demanding marine environments. This essential tool connects to your anchor handling tug’s winch via wire ropes, deploying to approximately 1/3 of the water depth for optimal performance.
How It Works
-
Precise Deployment – Positioned at the ideal depth for maximum effectiveness
-
Secure Engagement – “Snags” anchor chains with reliable precision
-
Controlled Recovery – Guides the anchor shank and flukes for smooth lifting
-
Final Retrieval – Enables safe boarding of anchors up to 30 tonnes
Key Features & Benefits
✔ Heavy-Duty Capacity
-
Handles anchors up to 30 tonnes
-
Compatible with stud link chains up to 4½ inches diameter
✔ Superior Construction
-
High-strength casting steel body
-
Black bitumen paint coating for corrosion resistance
✔ Safety Certified
-
SWL options: 110T & 250T
-
Certified by CCS, ABS, BV, LR, NK, RINA
Technical Specifications
-
Model: J Chaser Hook
-
Material: Marine-Grade Casting Steel
-
Surface Treatment: Corrosion-resistant black bitumen paint
-
Certifications: Full compliance with international marine standards
Parameters:
| Proof Test | A | B | C | D | E | F | S.W.L | Weight |
| (ton) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (ton) | (kg) |
| 250 | 2436 | 1827 | 306 | 125 | 85 | 700 | 100 | 1884 |
| 400 | 2572 | 2184 | 456 | 180 | 144 | 700 | 250 | 3398 |
The description/sizes may be different with goods, please check with us when order.
