Inward Opening Aluminium Rectangular Window with Deadlight – 262.YHS-013
Application
This product is used widely for warships, chemical tankers, and high-speed vessels, with good tightness.

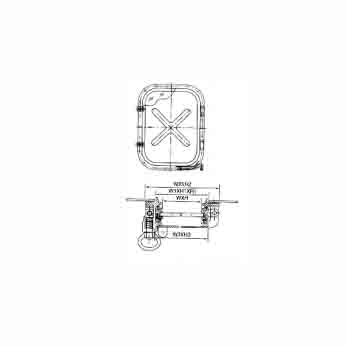

Dimensions and Specifications (See Table Below)
| Type | Light Size W × H | Wall Cut Size W1 × H1 × R1 | Outline Size W2 × H2 × R2 | Deadlight Size W3 × H3 |
|---|---|---|---|---|
| Left Inside (L) | 300 × 425 | 352 × 477 × R76 | 424 × 549 | 350 × 475 |
| Right Inside (R) | 355 × 500 | 407 × 552 × R76 | 479 × 624 | 405 × 550 |
| Right Inside (R) | 400 × 560 | 452 × 612 × R76 | 524 × 684 | 450 × 610 |
| Right Inside (R) | 450 × 630 | 502 × 682 × R126 | 574 × 754 | 500 × 680 |
| Right Inside (R) | 500 × 710 | 552 × 762 × R126 | 624 × 834 | 550 × 760 |
| Right Inside (R) | 560 × 800 | 612 × 852 × R126 | 684 × 924 | 610 × 850 |
(Note: The “Type” column in the original table lists “Left Inside” for the first row and “Right Inside” for all subsequent rows. This has been preserved as provided.)
Model Designation Example
Clear size 450 × 630 mm, left inside opening (L), with deadlight, inward opening side-hinged aluminium rectangular window.
Rectangular Window with Deadlight 450 × 630 – U – 262.YHS-013
Note: The description may be different with the product, please contact us for quotation.
