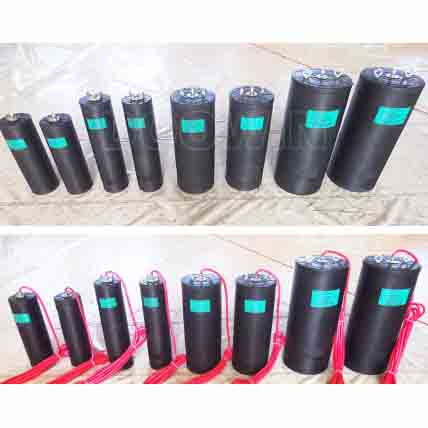

Inflatable Pipe Plugs
General
The inflatable pipe plugs are widely applicable to all kinds of pipeline closed water tests, municipal pipeline maintenance, plugging, dredging, dredging, water blocking, leaking, drainage pipeline maintenance, sewage industry treatment, fire emergency repair, and plugging construction, etc.
Features and Advantages
-
Suitable for commercial, municipal, large diameter, or high-pressure pipes and pipe systems.
-
We use high-quality rubber and synthetic-tire-cord to be light weight without compromising on toughness.
-
Inflatable pipe plugs are reinforced with synthetic-tire-cord for extra durability.
-
Inflatable pipe plugs have all been tested at the higher pressure than their working pressure to ensure safety.
-
We supply the whole set accessories. Ready to use when getting the plugs.
Technical Parameters (Sewer/Municipal/Water Depth)
| Stopper size (mm) | Length (mm) | Water Depth: Low Working Pressure (m) | Water Depth: Standard Working Pressure (m) | Water Depth: Ultra High Working Pressure (m) |
|---|---|---|---|---|
| 200 | 600 | 0.12 | 0.20 | 0.25 |
| 300 | 1200 | 0.12 | 0.20 | 0.25 |
| 400 | 1300 | 0.12 | 0.20 | 0.25 |
| 500 | 1400 | 0.12 | 0.20 | 0.25 |
| 600 | 1500 | 0.12 | 0.20 | 0.25 |
| 700 | 1600 | 0.12 | 0.20 | 0.25 |
| 800 | 1800 | 0.12 | 0.20 | 0.25 |
| 1000 | 2000 | 0.12 | 0.17 | 0.20 |
| 1200 | 2400 | 0.12 | 0.17 | 0.20 |
| 1250 | 2600 | 0.12 | 0.17 | 0.20 |
| 1350 | 2800 | 0.12 | 0.17 | 0.17 |
| 1500 | 3100 | 0.12 | 0.13 | 0.17 |
| 1600 | 3300 | 0.12 | 0.13 | 0.17 |
| 1800 | 3700 | 0.12 | 0.13 | 0.17 |
| 1850 | 3900 | 0.12 | 0.13 | 0.17 |
| 1900 | 4000 | 0.12 | 0.13 | 0.17 |
| 2000 | 4300 | 0.12 | 0.13 | 0.17 |
| 2200 | 4800 | 0.12 | 0.13 | 0.17 |
| 2400 | 4800 | 0.12 | 0.13 | 0.17 |
Commercial Pipe Plugs
General
Commercial series inflatable pipe plugs can be built up with high-quality natural rubber, NBR, neoprene rubber, or other materials. Nylon layers were used to reinforce it. This ensures our inflatable pipe stoppers are resistant to fuel, petrochemicals, and other caustic chemicals. Each inflatable pipe plug is equipped with rigging hardware, inflation ports, and a pressure relief valve.
Technical Parameters
| Model | Pipe Diameter (mm) | Air Pressure (MPa) | Diameter (mm) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|
| DN150-300 | 150-300 | 0.2 | 135 | 500 | 2.5 |
| DN280-400 | 200-400 | 0.2 | 180 | 600 | 4 |
| DN280-500 | 200-500 | 0.2 | 180 | 750 | 5 |
| DN350-600 | 300-600 | 0.15 | 280 | 750 | 10 |
| DN450-800 | 400-800 | 0.15 | 380 | 900 | 18 |
| DN500-1000 | 500-1000 | 0.15 | 460 | 1050 | 25 |
Note: The description may be different with the product, please contact us for quotation.
