IMO certified marine pressure tank | Pressurized Water Storage System for Shipboard Fresh & Seawater Supply
Product Overview

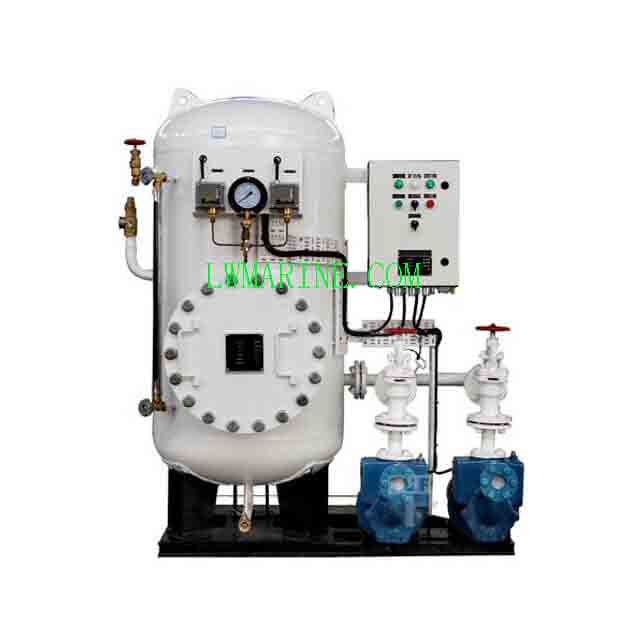

The IMO certified marine pressure tank is a high-capacity marine-grade pressure vessel designed to maintain consistent water pressure in shipboard freshwater and seawater supply systems. Engineered to meet stringent marine standards including CB/T46-1999 and CB*53-80, this hydrophore system ensures reliable operation and safety in demanding maritime environments. With a 3.0 m³ capacity and robust construction, it is ideal for commercial vessels, offshore platforms, and naval applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Pressure | 0.6 MPa |
| Design Pressure | 0.7 MPa |
| Working Temperature | 0~45°C |
| Design Temperature | 50°C |
| Capacity | 3.0 m³ |
| Relief Valve Set Pressure | 0.63 MPa |
| Corrosion Allowance | 0.75 mm |
| Welded Joint Coefficient | 0.6 |
| Net Weight | 775 kg |
| Gross Weight | 865 kg (with export wooden case) |
Material Options
-
CCS-B Steel: Cost-effective solution for standard marine applications
-
SS304 Stainless Steel: Enhanced corrosion resistance for harsh environments
-
SS316 Stainless Steel: Superior corrosion resistance for chemical exposure areas
Connection Specifications
| Mark | Connection Name | Size | Standard |
|---|---|---|---|
| a | Relief Outlet | DN32 | – |
| b | Water Inlet | DN50 | CB/T46-1999 PN1.0 |
| c | Compressed Air Inlet | DN10 | CB*53-80 |
| d | Water Outlet | DN50 | CB/T46-1999 PN1.0 |
The description/sizes may be different with goods, please check with us when order.
