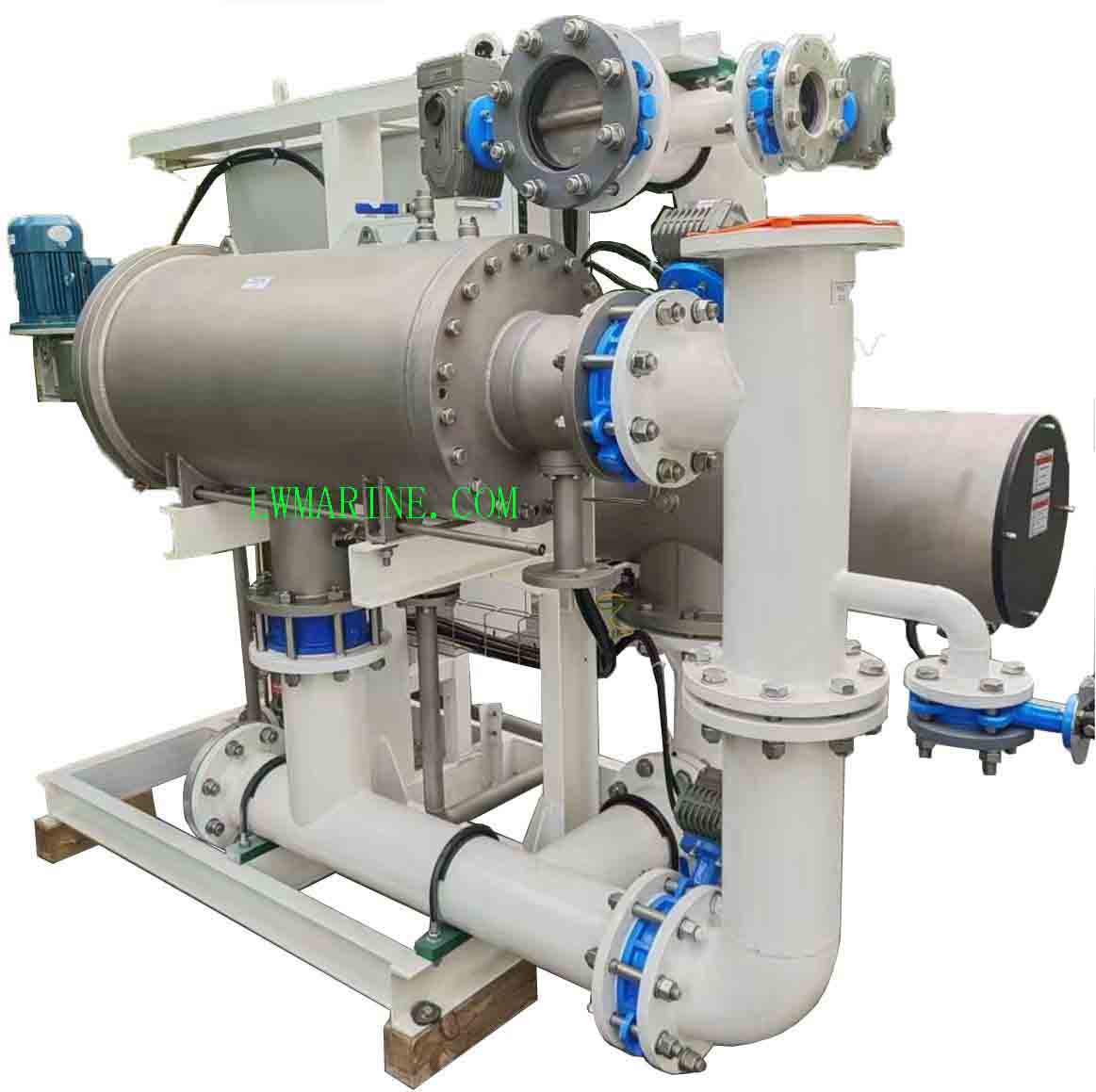

IMO Approved BWMS

IMO Approved BWMS Ballast Water Management System | USCG & IMO Type Approved | UV + Filtration Treatment System for Ships

Product Overview
Our IMO Approved BWMS Ballast Water Management System is an advanced, environmentally safe solution combining automatic self-cleaning filtration and medium-pressure UV technologies to meet global compliance standards. Designed for all vessel types and sizes, this system effectively eliminates invasive aquatic species, bacteria, and pathogens without the use of chemicals. It operates efficiently across all water salinities and temperatures, ensuring reliable performance in any sailing region while preventing secondary pollution and minimizing ecological impact.

Key Advantages of Our UV + Filtration BWMS

✅ Compared to Chemical Treatment Systems:

100% Chemical-Free: No toxic discharges, no exposure risks, and no corrosive byproducts
Enhanced Safety: Eliminates hazards associated with chemical handling and storage
Eco-Friendly Operation: Prevents secondary pollution to marine environments
Simplified Compliance: No need for neutralization treatments or hazardous material documentation

✅ Compared to Other UV-Based Systems:

Optimized Energy Efficiency: 40-micron self-cleaning filter improves UV transmittance (UVT), reducing power consumption
Retrofit & Newbuild Ready: Flexible design ideal for existing vessels and new constructions
Space-Saving Design: Compact footprint with minimal installation requirements
Future-Proof Performance: Adjustable UV dosage adapts to evolving international standards

How It Works – Advanced Two-Stage Treatment Process

Ballasting Phase:

Self-Cleaning Filtration: Incoming water passes through a 40-micron automatic filter, removing suspended solids, sediments, and larger organisms
UV Disinfection: Filtered water enters the medium-pressure UV reactor, where UV-C radiation eradicates bacteria, viruses, plankton, and larvae
Clean Ballast Storage: Treated water is distributed to ballast tanks, preventing sediment accumulation and weight loss

Deballasting Phase:

Bypass Filtration: Ballast water bypasses the filter unit and flows directly to the UV reactor
Secondary Disinfection: UV reactor eliminates any organisms that may have regenerated in tanks (preventing “dark repair” regrowth)
Safe Discharge: Treated water is discharged compliantly without harming local ecosystems

Core System Components

40-Micron Self-Cleaning Filter: Automatically removes total suspended solids (TSS) and optimizes UV transmittance
Medium-Pressure UV Reactor: Delivers variable UV intensity tailored to real-time water conditions
Intelligent Control System: Monitors UV dosage, filter pressure, and treatment efficacy continuously
Backflush Mechanism: Automatically cleans filter elements based on differential pressure (0.5 bar set point)
