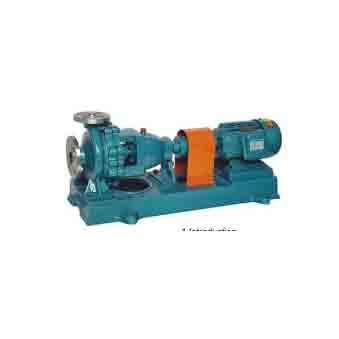

IH, IN Series Insulation Chemical Centrifugal Pump

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to contact us via whatsapp for details

IH, IN Series Insulation Chemical Centrifugal Pump

1. Introduction

The temperature of the pump delivery medium is in the range of -20℃~105℃. When necessary, cooling measures can be adopted to transport higher – temperature media. It is used in the chemical industry, petroleum, metallurgy, electric power, paper – making, food, pharmaceutical, synthetic fiber, and other sectors to transport corrosive or non – contaminated water – like media.

2. Technical Parameters

Model	Flow rate (m³/h)	Head (N)	Speed (r/min)	Motor power (KW)	Inhalation Diameter (mm)	Discharge Diameter (mm)
IH50 – 32 – 125	12.5	20	2900	2.2	50	32
	6.3	5	1450	0.55	50	32
IH50 – 32 – 160	12.5	32	2900	3	50	32
	6.3	8	1450	0.55	50	32
IH50 – 32 – 200	12.5	50	2900	5.5	50	32
	6.3	12.5	1450	0.75	50	32
IH50 – 32 – 250	12.5	80	2900	11	50	32
	6.3	20	1450	1.5	50	32
IH65 – 50 – 125	25	20	2900	3	65	50
	12.5	5	1450	0.55	65	50
IH65 – 50 – 160	25	32	2900	5.5	65	50
	12.5	8	1450	0.75	65	50
IH65 – 50 – 200	25	50	2900	7.5	65	40
	12.5	12.5	1450	1.1	65	40
IH65 – 40 – 200	25	80	2900	15	65	40
	12.5	20	1450	2.2	65	40
IH65 – 40 – 315	25	125	2900	30	65	40
	12.5	32	1450	4	65	40
IH80 – 65 – 125	50	20	2900	5.5	80	65
	25	5	1450	0.75	80	65
IH80 – 65 – 160	50	32	2900	7.5	80	65
	25	8	1450	1.5	80	65
IH80 – 50 – 200	50	50	2900	15	80	50
	25	12.5	1450	2.2	80	50
IH80 – 50 – 250	50	80	2900	37	80	50
	25	20	1450	3	80	50
IH100 – 80 – 125	100	20	2900	11	100	80
	50	5	1450	1.5	100	80
IH100 – 80 – 160	100	32	2900	15	100	80
	50	8	1450	2.2	100	80
IH100 – 65 – 200	100	50	2900	22	100	65
	50	12.5	1450	4	100	65
IH100 – 65 – 250	100	80	2900	37	100	65
	50	20	1450	5.5	100	65
IH125 – 65 – 315	100	125	2900	75	125	65
	50	32	1450	11	125	65
IH125 – 100 – 200	200	50	2900	45	125	100
	100	12.5	1450	7.5	125	100
IH125 – 100 – 250	200	80	2900	75	125	100
	100	20	1450	11	125	100
IH125 – 100 – 315	200	125	2900	110	125	100
	100	32	1450	15	125	100
IH150 – 125 – 250	200	20	2900	18.5	150	125
	100	5	1450	3	150	125
IH150 – 125 – 315	200	32	2900	30	150	125
	100	8	1450	4.5	150	125
IH150 – 125 – 400	200	50	2900	45	150	125
	100	12.5	1450	7.5	150	125
IH200 – 150 – 250	400	20	2900	37	150	150
	200	5	1450	7.5	150	150
IH200 – 150 – 315	400	32	2900	55	150	150
	200	8	1450	11	150	150
IH200 – 150 – 400	400	50	2900	90	150	150

Attention please: The description might be incorrect, please contact us for confirmation.
