I‑Beam Clamp with Eye
| Model | TBE‑1T | TBE‑2T | TBE‑3T | TBE‑5T | TBE‑10T |
|---|---|---|---|---|---|
| Capacity (t) | 1000 | 2000 | 3000 | 5000 | 10000 |
| Running test load (KN) | 14.71 | 29.42 | 44.13 | 61.29 | 122.58 |
| Adjustable Beam Width (mm) | 75–230 | 75–230 | 80–320 | 90–320 | 90–320 |

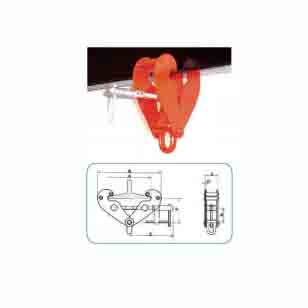

Dimensions (mm)
| Parameter | TBE‑1T | TBE‑2T | TBE‑3T | TBE‑5T | TBE‑10T |
|---|---|---|---|---|---|
| A Max | 278 | 278 | 356 | 356 | 356 |
| B Max | 380 | 380 | 500 | 500 | 500 |
| B Min | 183 | 183 | 220 | 220 | 220 |
| C | 64 | 76 | 100 | 112 | 120 |
| D | 4 | 6 | 8 | 10 | 12 |
| E | 217 | 217 | 277 | 277 | 277 |
| F Max | 150 | 150 | 220 | 220 | 220 |
| F Min | 90 | 90 | 145 | 145 | 145 |
| G | 26 | 26 | 50 | 47 | 52 |
| Net weight (kg) | 3.5 | 4.5 | 9.5 | 11 | 16 |
Description:
For the transfer of steel beams and attachment of tackle eye.
-
Available in capacities from 2 through 10 metric tons.
-
Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
-
Individually proof tested to 2 times the working load limit with certification.
-
Each product is individually serialized, with the serial number and proof load test date stamped on the body. The serial number is included on the test certificate with maintenance and warranty logbook.
-
Maintenance replacement parts are available.
-
Maintenance by an ISO 9001 facility.
-
All sizes are RFID equipped.
Optional extras:
-
Can be supplied with shackle.
-
Special design with flattened, reinforced jaws.
Note: The description may be different with the product, please contact us for quotation.
