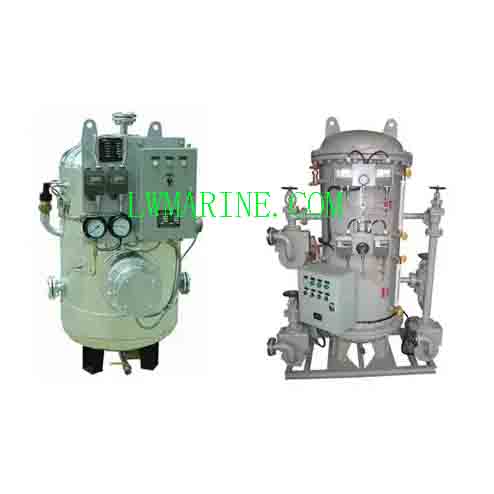

YLG – 0.12 Vertical Hydrophore Tank
When it comes to ensuring a reliable and consistent water supply on ships and offshore platforms, the YLG – 0.12 Vertical Hydrophore Tank stands out as the ultimate solution. This high – end, space – efficient vertical pressure vessel is specifically designed and meticulously crafted to meet the demands of both freshwater and seawater supply systems in the marine environment.
In the confined spaces of vessels, where every square inch is valuable, the compact vertical design of the YLG – 0.12 is a game – changer. It allows for optimal utilization of available area while guaranteeing a seamless and uninterrupted water supply for various purposes, including drinking, washing, cleaning, and sanitary needs. This tank ensures that optimal pressure levels are maintained throughout the vessel’s entire piping network, providing a hassle – free water supply experience.
Built to Conquer Marine Challenges
The YLG – 0.12 is engineered to adhere to the most stringent marine standards, making it a paragon of durability, safety, and ease of maintenance in the harsh marine environment. Constructed using top – quality materials and employing advanced manufacturing techniques, this tank is built to withstand extreme conditions and deliver long – lasting performance. Whether facing high – salt seawater, fluctuating temperatures, or constant vibrations, the YLG – 0.12 remains steadfast, ensuring a reliable water supply at all times.
Understanding the Operation of the Vertical Hydrophore System
The operation of the YLG – 0.12 vertical hydrophore system is based on a simple yet highly effective principle. A water pump is used to force pressurized water into the tank, which in turn compresses the air inside. This compression helps maintain a consistent water pressure across the entire piping network of the vessel. Let’s take a closer look at the key components that make this system work flawlessly:
- Liquid Level Meter: This crucial component enables real – time visual monitoring of the water levels within the tank. Operators can simply glance at the meter to quickly determine the available water quantity, allowing them to plan refills in advance or troubleshoot any water – supply – related issues promptly.
- Pressure Gauge: The pressure gauge provides an accurate and real – time display of the internal pressure of the tank. This information is vital for ensuring that the pressure remains within the safe and optimal range, preventing any potential damage to the system or the vessel’s plumbing.
- Pressure Controller: The pressure controller is an intelligent device that automatically activates the water pump when the pressure inside the tank falls below 0.4 MPa and stops it when the pressure reaches 0.6 MPa. This automated control mechanism ensures that the water pressure is always maintained at the desired level without the need for constant manual intervention, enhancing operational efficiency.
- Safety Valve: In the unlikely event of over – pressurization, the safety valve is triggered at 0.63 MPa. This valve acts as a crucial safeguard, releasing excess pressure to prevent any potential damage to the tank or the surrounding equipment, thus ensuring the overall safety of the system.
- Charge Valve: The charge valve is used to inject compressed air into the tank to maintain the air cushion. This air cushion is essential for the proper functioning of the hydrophore system as it helps in maintaining the water pressure. By regularly injecting compressed air through the charge valve, operators can ensure that the system continues to operate efficiently over an extended period.
- Discharge Valve: During maintenance or inspection procedures, the discharge valve enables easy draining of the water from the tank. This makes it convenient for technicians to access the internal components of the tank for cleaning, repair, or replacement, ensuring the long – term reliability of the system.
This fully automated system significantly reduces the need for manual intervention, ensuring a continuous and uninterrupted water supply at the preset pressure levels, which is crucial for the smooth operation of marine vessels.
Hydrophore TankTechnical Specifications
| Specification | Detail |
|---|---|
| Volume | 0.12 m³ |
| Working Pressure | 0.6 MPa |
| Design Pressure | 0.7 MPa |
| Strength Test Pressure | 1.05 MPa |
| Air Tightness Test Pressure | 0.875 MPa |
| Safety Valve Opening Pressure | 0.63 MPa |
| Working Temperature | 0°C to 45°C |
| Design Temperature | 50°C |
Interface Connections
| Interface Type | Size |
|---|---|
| Water Inlet | DN25 |
| Water Discharging Outlet | DN25 |
| Inflation Inlet | DN10 |
| Discharging Outlet | G3/4″ |
| Safety Valve | ZG1/2″ |
YLG – 0.3 Marine Hydrophore Tank (Additional Information)
The YLG – 0.3 Marine Hydrophore Tank, available in a wall – hanging type (A Type), is an excellent choice for providing fresh water for living and cleaning purposes on ships and drilling platforms. This device utilizes compressed air to maintain a constant pressure of the water in the tank, ensuring a reliable supply of water for crew life and machinery and equipment.
The quality of the pressure water tank has been approved by well – known classification societies such as ABS, CCS, BV, EC, GL, and DNV. When making a purchase decision, you can simply inform us of the specific certificate you require.
Technical Data for YLG – 0.3 Marine Hydrophore Tank (A Type)
| Type | Capacity (m³) | Design Pressure (Mpa) | Working Pressure (Mpa) | DN | A | B | B1 | C | d | d1 | h1 | h2 | h3 | D1 | D2 | L | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.12 | 0.7 | 0.6 | 400 | 608 | 656 | 361 | Φ18 | 470 | 260 | DN25 | DN20 | 320 | 1187 | 130 | |||
| A | 0.2 | 0.7 | 0.6 | 500 | 708 | 756 | 411 | Φ20 | 600 | 300 | 330 | 1304 | 170 | |||||
| A | 0.3 | 0.7 | 0.6 | 600 | 808 | 856 | 461 | 600 | 300 | DN32 | 370 | 1358 | 215 | |||||
| B | 0.5 | 0.7 | 0.6 | 700 | 908 | 1034 | 593 | Φ25 | 830 | 300 | 425 | 1641 | 330 | |||||
| B | 1 | 0.7 | 0.6 | 900 | 1108 | 1234 | 693 | 950 | 450 | DN40 | DN32 | 525 | 2008 | 415 | ||||
| C | 0.5 | 0.7 | 0.6 | 700 | 908 | 1034 | 593 | Φ490 | Φ25 | 1310 | DN32 | DN20 | 425 | 1759 | 330 | |||
| C | 1 | 0.7 | 0.6 | 900 | 1108 | 1234 | 693 | Φ630 | 1578 | DN40 | DN32 | 525 | 2090 | 415 | ||||
| C | 1.5 | 0.7 | 0.6 | 1000 | 1208 | 1330 | 744 | Φ700 | 1835 | 570 | 2525 | 555 | ||||||
| C | 2 | 0.7 | 0.6 | 1200 | 1408 | 1540 | 844 | Φ840 | 1937 | DN50 | 600 | 2626 | 600 | |||||
| C | 3 | 0.7 | 0.6 | 2659 | 3401 | 775 |
FAQs
- What is the lifespan of the YLG – 0.12 Vertical Hydrophore Tank in a marine environment?
The lifespan of the tank depends on various factors such as the quality of maintenance, the frequency of use, and the operating conditions. However, with proper maintenance and regular inspections, the YLG – 0.12 can last for many years in a marine environment, providing reliable water supply services. - Can the YLG – 0.12 Vertical Hydrophore Tank be customized according to specific requirements?
Yes, we offer customization services for the YLG – 0.12 Vertical Hydrophore Tank. Whether you need specific interface connections, different pressure ratings, or unique dimensions, our team can work with you to design and manufacture a tank that meets your exact requirements. - How often should the components of the YLG – 0.12 Vertical Hydrophore Tank be inspected and maintained?
It is recommended to conduct regular inspections of the tank’s components, such as the pressure gauge, safety valve, and liquid level meter, at least once a month. Additionally, a more comprehensive maintenance check, including cleaning and lubrication of moving parts, should be carried out every six months to ensure the optimal performance of the system. - Is the YLG – 0.12 Vertical Hydrophore Tank compatible with different types of water pumps?
The YLG – 0.12 Vertical Hydrophore Tank is designed to be compatible with a wide range of water pumps. However, it is important to ensure that the pump’s specifications, such as flow rate and pressure rating, are suitable for the tank’s requirements. Our technical team can provide guidance on selecting the right water pump for your specific application. - What certifications does the YLG – 0.12 Vertical Hydrophore Tank have?
While the specific certifications may vary depending on the model and region, the YLG – 0.12 Vertical Hydrophore Tank is designed to meet international marine standards. We can provide detailed information on the certifications applicable to your order upon request.
The description/sizes may be different with goods, please check with us when order.
