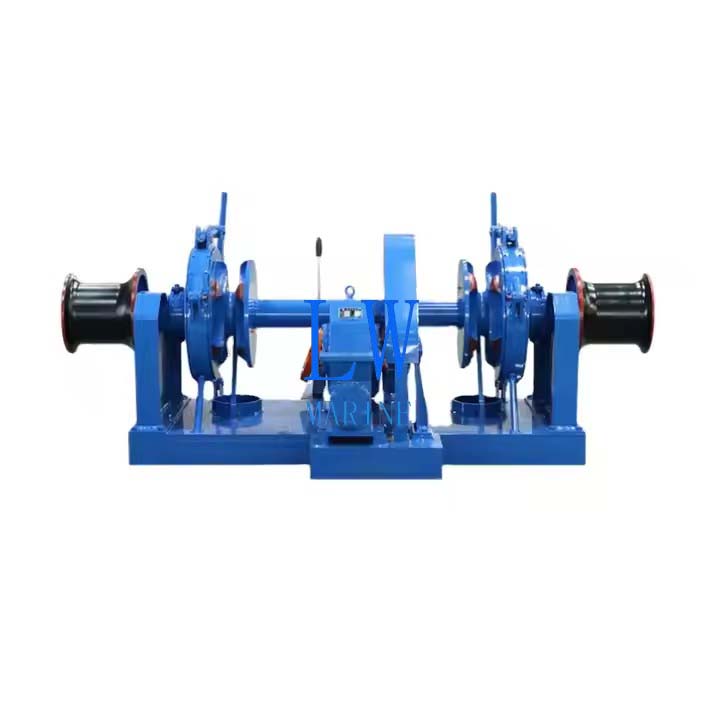

20.5mm Double Gypsy Hydraulic Windlasses
Application
The 20.5mm Double Gypsy Hydraulic Windlasses is a critical piece of deck equipment for marine vessels. Powered by a hydraulic motor, this windlass is designed for anchoring operations including deploying and retrieving anchors with their chains.
This model features:
-
Two gypsy wheels for handling multiple anchor chains
-
A double warping head for mooring operations
-
A closed gearbox design that provides equivalent safety to open gearbox configurations
Material
-
Main components: High-strength cast steel
-
Critical parts: Corrosion-resistant 316L stainless steel
Advantages and Features
-
Compact and robust construction with high load capacity
-
Dual operation modes (local and remote control)
-
Simple installation and low maintenance requirements
-
Excellent corrosion resistance for extended service life
-
Manual brake and clutch system for reliable operation
-
Certified by major classification societies (IRS, BV, LR)
-
Dependable performance with enhanced safety features
-
Standard configuration includes double warping head
-
Customizable to meet specific vessel requirements
| Specifications | |
| Chain diameter(AM2) | 20.5mm |
| Speed | ≥10m/min |
| Power | 5.5KW |
| Voltage | 415v /50Hz |
| Working load | 17.9KN |
| Overload | 26.9KN |
| Support load | 110KN |
The description/sizes may be different with goods, please check with us when order.
