Hydraulic Vertical Capstans – Professional Mooring System

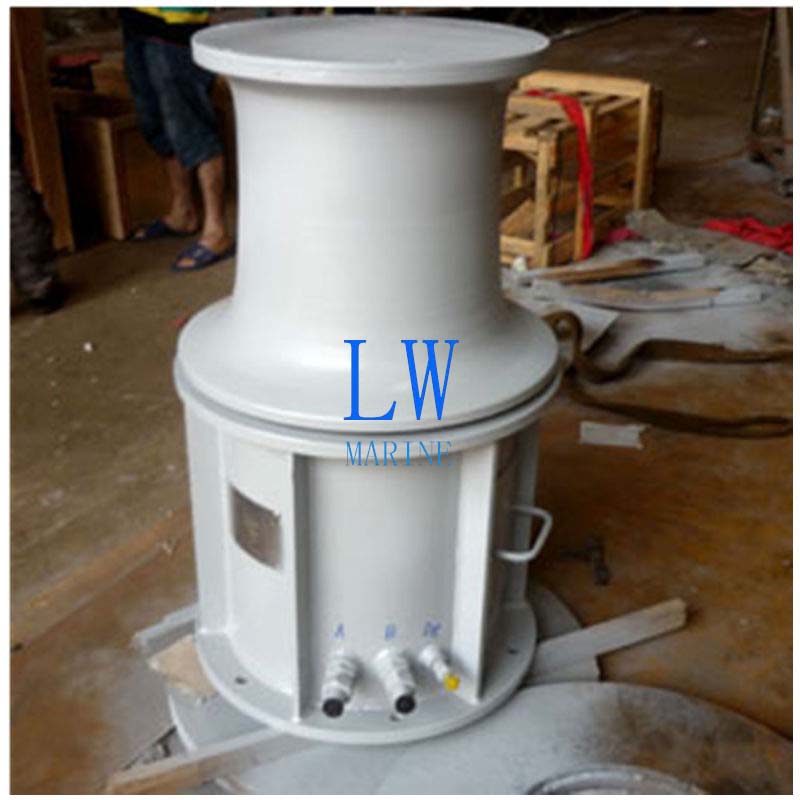

Hydraulic Vertical Capstans for Marine Applications
The Hydraulic Vertical Capstan is a heavy-duty deck machinery solution designed for secure vessel mooring and anchoring operations. Featuring 360° line access and stepless speed control, this system provides exceptional performance while optimizing deck space on commercial vessels and workboats.
Technical Specifications
Core Components
✔ Vertical Mooring Head – 316L stainless steel contact surface
✔ Hydraulic Power Unit (HPU) – Electric or diesel driven options
✔ Precision Gearbox – Smooth power transmission
✔ Fail-Safe Braking System – Manual + hydraulic options
Configuration Options
-
Rope Configuration:
-
Standard 6-64mm diameter wire rope
-
Synthetic line compatibility
-
-
Chain Gypsy Option:
-
14-76mm chain compatibility
-
Combined rope/chain models available
-
Performance Data
| Parameter | Specification |
|---|---|
| Pulling Capacity | 20-200kN (configurable) |
| Line Speed | 0-15 m/min (adjustable) |
| Operating Temp | -30°C to +60°C |
| Drum Diameter | 400-800mm (customizable) |
Certifications & Quality Assurance
✔ BV, LR, IRS Certified
✔ ISO 9001:2015 Manufacturing Standards
✔ SOLAS Compliant Safety Systems
✔ 100% Factory Load Testing
Parameters:
| Type | Mooring Speed (m/min) | Working Load(KN) | Motor Capacity(KW) |
| 5KN | 15 | 5 | 3 |
| 10KN | 15 | 10 | 5.5 |
| 15KN | 15 | 15 | 7.5 |
| 20KN | 12 | 20 | 11 |
| 30KN | 12 | 30 | 15 |
| 50KN | 12 | 50 | 22 |
| 100KN | 12 | 100 | 45 |
| 150KN | 9 | 150 | 55 |
| 200KN | 9 | 200 | 75 |
| 300KN | 9 | 300 | 90 |
The description/sizes may be different with goods, please check with us when order.
