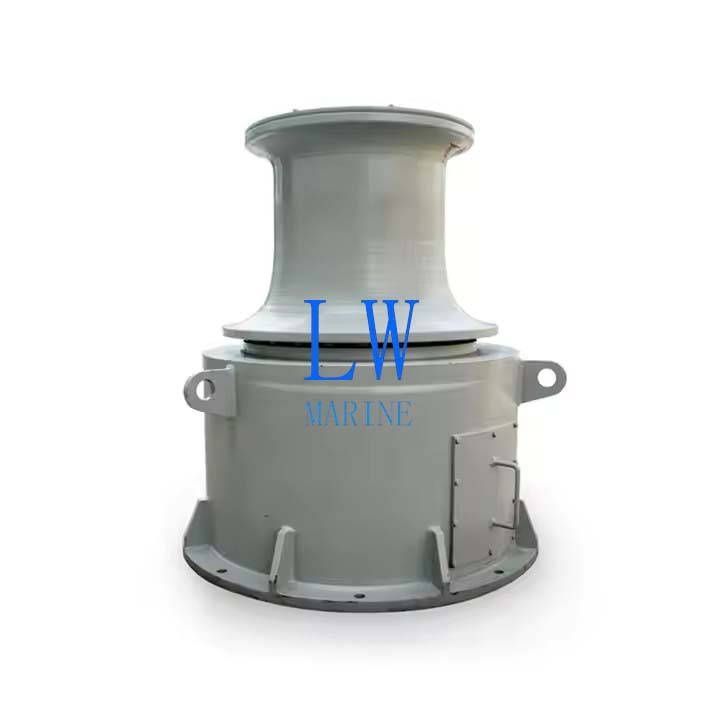

Hydraulic Vertical Capstans – Versatile Marine Line Handling System
360° Deck Solution for Mooring & Anchoring Operations
The Hydraulic Vertical Capstans is a high-performance deck machinery unit designed for multi-directional line handling on vessels of all sizes. Its vertical drum configuration provides unrestricted rope access while keeping the drive system protected below decks.
Key Applications
✔ Commercial Vessel Mooring – Secure portside and starboard operations
✔ Anchor Handling – Efficient chain/rope management
✔ Yacht & Workboat Deck – Space-saving line control
✔ Towing & Salvage – Auxiliary load management
Technical Specifications
Core Design Features
✔ Vertical Drum Orientation – 360° rope access from any angle
✔ Below-Deck Drive System – Protected hydraulic motor and gearbox
✔ High-Traction Drum – Grooved surface with 4-ton/m² grip pressure
✔ Marine-Grade Construction – 316L stainless steel contact surfaces
Performance Advantages
-
Stepless Speed Control – Infinite adjustment via hydraulic flow
-
Compact Footprint – 40% space savings vs horizontal models
-
All-Weather Operation – -20°C to +55°C temperature range
-
Safety Systems – Dual redundant braking (manual/hydraulic)
Control Options
-
Deckside Control Panel – Waterproof operation station
-
Wireless Remote – 150m operational range
-
Bridge Integration – Optional CAN bus connectivity
Certifications & Compliance
✔ LR, RINA, IRS Certified
✔ SOLAS Safety Compliant
✔ OCIMF Mooring Guidelines
Parameters:
| Chain Dia | Warping | Warping | Working | Working | Wire Dia.(mm) | Motor |
| (mm) | Load(KN) | Speed(m/min) | Load(KN) | Speed(m/min) | Power(kw) | |
| Φ11/14 | 5 | ≥10 | 5.9/7.4 | ≥12 | Φ11 | 4 |
| Φ16/17.5 | 8 | ≥10 | 10.9/13.0 | ≥12 | Φ13 | 7.5 |
| Φ19/22 | 10 | ≥10 | 15.3/20.6 | ≥12 | Φ13 | 11 |
| Φ24/26 | 20 | ≥8.5 | 24.5/28.7 | ≥9 | Φ15 | 11 |
| Φ28/30 | 30 | ≥8.5 | 33.3/38.3 | ≥9 | Φ17.5 | 15 |
| Φ32/34/36 | 30 | ≥8.5 | 43.5/49.1/55.1 | ≥9 | Φ17.5 | 18.5 |
| Φ38/40/42 | 50 | ≥8.5 | 61.4/68.0/75.0 | ≥9 | Φ20.5 | 30 |
| Φ44/46/48 | 50 | ≥8 | 82.3/89.9/97.9 | ≥9 | Φ26 | 37 |
| Φ50/52/54 | 60 | ≥8 | 106.3/114.9/123.9 | ≥9 | Φ26 | 45 |
The description/sizes may be different with goods, please check with us when order.
