HYDRAULIC SLIDING WATERTIGHT DOOR
This product is used for watertight partitions below the waterline on ships, typically between the engine room and shaft tunnel, engine room and boiler room, main engine room and steering gear room, etc. It can meet the requirements of steel ship construction regulations and SOLAS. The door can be power – operated and manually operated from both sides, and can also be closed or opened manually on the upper deck as required by the customer, with a manual operating handle provided on the upper deck.
IT IS WATERTIGHT DOOR FOR BULKHEAD BELOW WATERLINE, WHICH IS USUALLY USED BETWEEN ENGINE ROOM AND SHAFT TUNNEL, OR BETWEEN ENGINE ROOM AND BOILER ROOM, OR BETWEEN ENGINE ROOM AND STEERING GEAR ROOM, ETC. IT COMPLIES WITH CLASS RULES FOR SEA – GOING SHIP AND SOLAS. THIS DOOR CAN BE POWER – OPERATED AND MANUALLY OPERATED FROM BOTH SIDES OF DOOR, AND CAN ALSO BE CLOSED OR OPENED MANUALLY ON UPPER DECK AS REQUIRED BY CUSTOMER, WITH A HAND OPERATION HANDLE PROVIDED ON UPPER DECK.

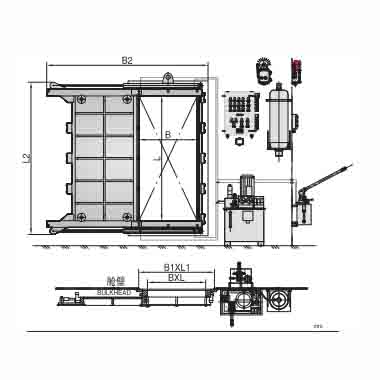

[Technical diagram showing a front – view of the hydraulic sliding watertight door installed in a bulkhead, with dimensions labeled B, B2, B1×L1, BX×L, and a side – view showing the door in a closed state with hydraulic components indicated.]
| Size of Doorway BX×L | Size of B.H. Opening B1×L1 | Outer Size B2×L2 | Opening Direction | Weight (KG) |
|---|---|---|---|---|
| 600X1200 | 800X1400 | 1720X1480 | Left – opening (L) | 765 |
| 700X1400 | 900X1600 | 1920X1680 | 872 | |
| 800X1800 | 1000X2000 | 2120X2080 | 1020 | |
| 900X1900 | 1100X2100 | 2320X2180 | Right – opening (R) | 1100 |
| 1000X2000 | 1200X2200 | 2520X2280 | 1230 | |
| 1200X2000 | 1400X2200 | 2920X2280 | 1350 |
Marking Example:
For a left – opening hydraulic sliding watertight door with a doorway size of 700X1400mm: Hydraulic Sliding Watertight Door 700X1400 – L CB/T3007 – 2000.
Attention please: The description might be incorrect, please contact us for confirmation.
