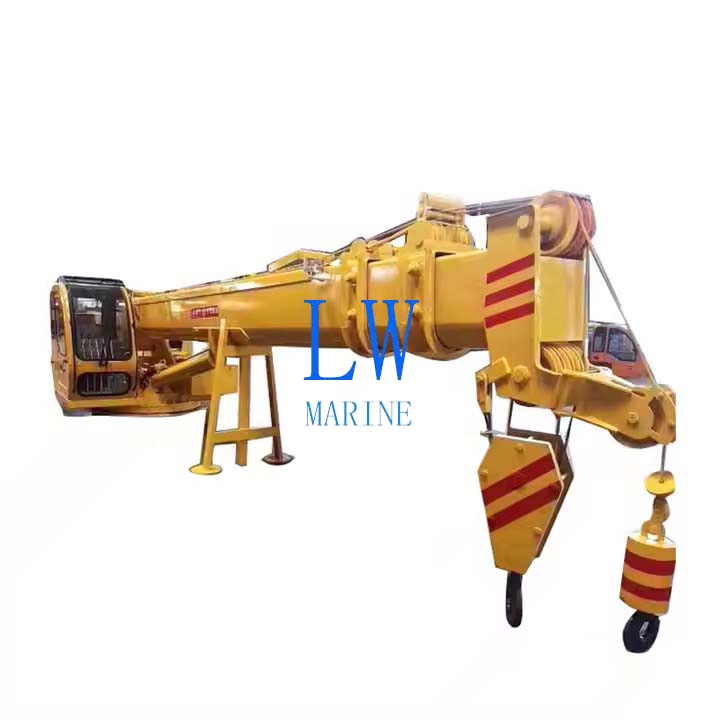

30kN Hydraulic Slewing Crane
Application
The 30kN Hydraulic Slewing Crane (3-ton capacity) is a robust lifting solution designed for precision load handling across multiple industries. With 3,061kg maximum capacity and full 360° rotation, it excels in:
-
Shipbuilding & repair operations
-
Portside cargo handling
-
Offshore platform maintenance
-
Industrial manufacturing processes
Key Benefits:
✔ 3-ton lifting capacity with hydraulic precision (±5mm positioning)
✔ Continuous 360° slewing for optimal load placement
✔ Adaptable design for marine and industrial environments
Maintenance Note:
-
Requires regular hydraulic fluid checks
-
Scheduled servicing ensures peak performance
Material Options
-
Aluminum: 5083 marine-grade alloy (lightweight, 20% corrosion resistance improvement)
-
Carbon Steel: Q345B structural steel (345MPa yield strength)
-
Stainless Steel: 316L (PREN >25 for saltwater environments)
Advantages & Features
-
Optimized Structure:
-
FEA-validated design with 25% higher safety margin
-
Modular construction for easy transport/installation
-
-
Marine-Grade Durability:
-
<0.3mm/year corrosion rate in ASTM B117 testing
-
IP66-rated electrical components
-
-
Precision Control:
-
Proportional hydraulics with 0-15m/min speed control
-
Anti-sway system (optional)
-
-
Energy Efficiency:
-
Variable displacement pump reduces power use by 30%
-
Energy recovery during lowering
-
-
Safety Systems:
-
Dual-mode overload protection (95% auto-cutoff)
-
Emergency power-down function
-
-
Custom Solutions:
-
Boom lengths: 4-18m
-
ATEX-certified explosion-proof options
-
-
Certifications:
-
IRS, BV, LR, DNV, ABS
-
| Specifications | |
| SWL | 30KN |
| Motor Power | 22kW |
| Power source | AC380V/50Hz |
| Protect Class | IP44 |
| Insulate Class | F |
| Working Radius | 2.9-10m |
| Hoisting Speed | 0~18m/min |
| Hoisting Height | 30m |
| Slewing Speed | 1r/min |
| Slewing Angle | 360° |
| Luffing Time | ~38s |
| Tirm | ≤2° |
| Heel | ≤5° |
The description/sizes may be different with goods, please check with us when order.
