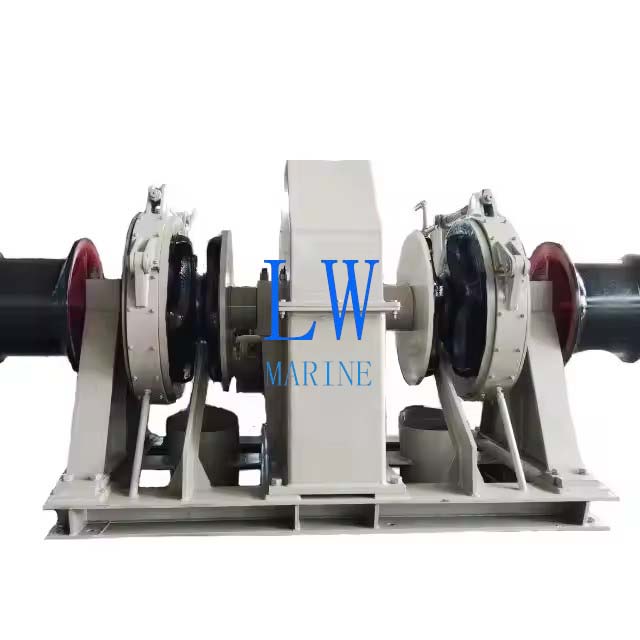

Double Gypsy Hydraulic Ship Windlass
Application
Double Gypsy Hydraulic Ship Windlass is categorized based on various specifications, including capacity, operating speed, and power source. They are available in different configurations, with some models incorporating additional features such as built-in capstans, warping heads, or other auxiliary equipment.
While functionally similar to single gypsy windlasses, the double gypsy design allows for handling multiple anchor chains. This windlass is used for deploying, retrieving, and controlling anchor chains, including tension and speed regulation during operations. Depending on the arrangement, windlasses can be classified as single gypsy, double gypsy, or combined types. They may also be equipped with an optional warping head.
For detailed marine hydraulic anchor windlass specifications, click here.
Advantages and Features
-
Compact & Durable – Robust construction with high-quality materials
-
Flexible Control – Supports both local and remote operation
-
Low Maintenance – Easy installation, lubrication, and inspection
-
Long Service Life – Corrosion-resistant for extended durability
-
Customizable Options – Available with or without a warping head
-
Versatile Design – Optional drum for additional functionality
-
Reliable & Safe – Ensures secure and stable performance
-
Tailored Solutions – Customizable to meet specific requirements
-
Brake & Clutch Options – Manual or hydraulic systems available
-
Certified Quality – Approved by leading classification societies (BV, LR, RINA, etc.)
Hydraulic Ship Windlass Specification:
| Chain Dia.(mm) | Warping Pull(kN) | Motor Power(kW) | Working Load(kN) | Working Speed(m/min) |
| 14/16/17.5 | 8 | 5.5 | 8.3/10.9/13.0 | ≥9 |
| 19/20.5/22 | 15 | 7.5 | 15.3/17.9/20.6 | ≥9 |
| 24/26 | 20 | 11 | 24.5/28.7 | ≥9 |
| 28/30 | 30 | 15 | 33.3/38.3 | ≥9 |
| 32/34/36 | 40 | 22 | 43.5/49.1/55.1 | ≥9 |
| 38/40/42 | 50 | 30 | 61.4/68.0/75.0 | ≥9 |
| 44/46/48 | 60 | 37 | 82.3/89.9/97.9 | ≥9 |
| 50/52/54 | 60 | 45 | 106.3/114.9/123.9 | ≥9 |
| 56/58/60 | 80 | 55 | 133.3/143.0/153.0 | ≥9 |
| 62/64 | 80 | 55 | 163.4/174.1 | ≥9 |
| 66/68 | 100 | 75 | 185.1/196.5 | ≥9 |
| 70/73 | 120 | 75 | 208.3/226.5 | ≥9 |
| 76/78 | 125 | 90 | 245.5/258.6 | ≥9 |
| 81/84 | 140 | 110 | 311.7/335.2 | ≥9 |
| 78/90 | 150 | 120 | 359.5/384.8 | ≥9 |
| 92/95 | 200 | 130 | 402.0/428.7 | ≥9 |
| 97/100 | 250 | 150 | 446.9/475.0 | ≥9 |
| 105/107 | 300 | 180 | 523.7/543.8 | ≥9 |
| 112/114 | 350 | 200 | 595.8/617.3 | ≥9 |
The description/sizes may be different with goods, please check with us when order.
